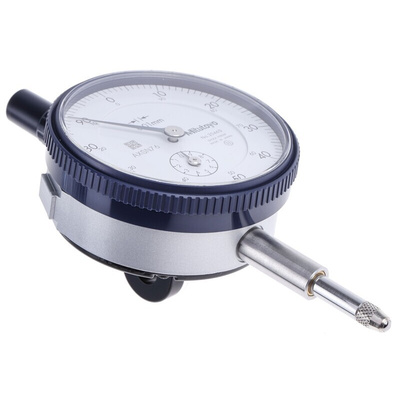

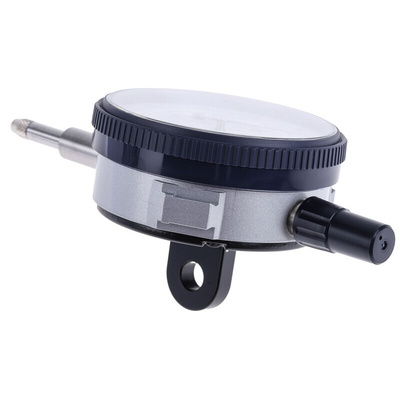

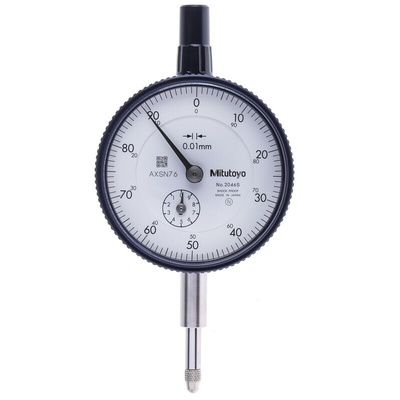

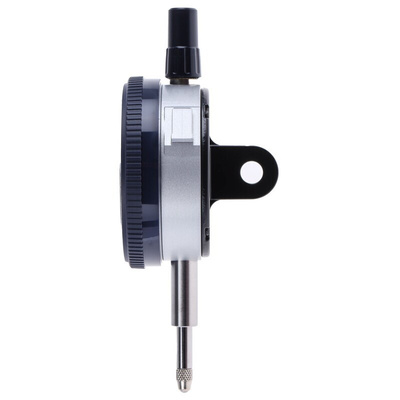

Mitutoyo 2046AMetric Dial Indicator, -10 → +10 mm Measurement Range, 0.01 mm Resolution , ±12 μm Accuracy With

Mitutoyo Lever Indicator

The Mitutoyo standard lever indicator has a dial reading of ±0-100 and a maximum resolution of 0.01mm. It is a compact professional measuring instrument that can reach places conventional indicators cannot. It is useful for both alignment and measurement purposes. The indicator has a strong frame that provides excellent rigidity and durability. The clear and concise wide dial face allows excellent visibility. The surface of the crystal is hard-coated for excellent scratch and chemical resistance. It is an instrument that measures comparison ensuring high-quality, high accuracy and reliability.
The dual-reading scale aids measurement in both directions. The outer clamp and lifting lever (optional) can be attached to either the right or left side. These parts can easily be installed and removed without tools.

Features and Benefits

Maximum measurement of 10mm
Accuracy of 13um
Secure adhesion between the bezel and crystal as well as the use of an O-ring prevents water or oil penetration
The spindle is made of high strength quench hardened stainless steel which resists arduous use
A carbide contact point is used
A special alloy is used for the sector gears to provide improved wear resistance

Applications

Automotive
Machining
Fabrication
Manufacturing
Workshops

Certifications

ANSI/ESD S20.20:2014
BS EN 61340-5-1:2007

Datasheet

Datasheet - 2046A
