9014350000, Weidmuller PZ6 Roto Hand Ratcheting Crimp Tool for Wire Ferrules, Обжимные клещи

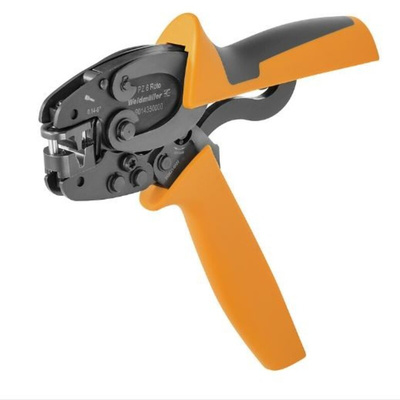

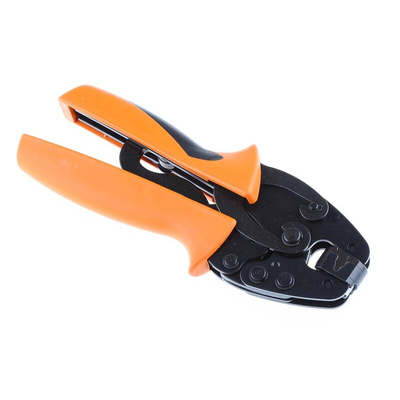

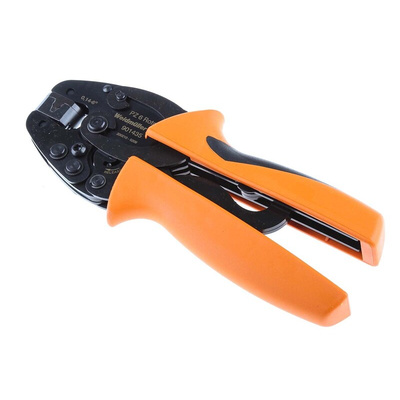

PZ6 Roto Crimp Tool

Weidmuller PZ 6 Roto is a professional tool designed for most demanding customers. It has been designed with a quality and durability in mind from the best materials to ensure long life operation.
Unique features such as Rotatable Crimp Insert that can be locked in two positions guarantee an extra flexibility and ease of use. This crimp tool is able to work with cables and ferrules in a range of 0.14 to 6.0 mm with no need of changing a dies.

Features and Benefits:
• Manual Tool designed for use with wires and cable ferrules over the complete cross-section range of 0.14 to 6.0 mm²
• Rotatable Crimping insert allows inserting the wire-end ferrules either from the front or side
• Ergonomically shaped handles guarantee a comfortable and safe operation
• The automatic secure stop prevents the tool from being opened during operation that may cause incorrect crimping
• Compact size: only 200mm long
• Weight: 428g

Typical Applications:
• Maintenance & repair
• Electrical Installations
• Cable assemblies

FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How do you maintain the product?
• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

Weidmuller Crimping Tool, Trapezoidal Crimp Type, 0.14 to 6mm² Cross-Section Range - PZ6 Roto Series - 9014350000

Securely clamp ferrules to the end of stripped wires with this crimping tool from Weidmuller. It can crimp ferrules with a broad cross-section range between 0.14 and 6mm², making it a versatile choice. Thanks to the rotating crimping mechanism, you can insert the wire-end ferrules from the front or the side for ease of use. The ergonomic handle shape is comfortable to hold and gives you a secure grip during operation.

Features & Benefits

• Compact length of 200mm for ease of storage
• Light weight of 427.28g makes it comfortable to hold for long periods of time

Applications

• Electrical systems
• Manufacturing facilities
• Maintenance and repair
• Domestic wiring

Is this crimping tool compatible with ferrules that have plastic collars?

Yes, you can use this crimping tool for ferrules with or without plastic collars, making it a versatile choice.

Why should I add ferrules to wires?

Adding a ferrule and then clamping it with this crimping tool reduces contact resistance and oxidation, helping to improve your cables' signal strength and longevity.
