9012600000, Weidmuller PZ 16 PZ 16 Hand Ratcheting Crimp Tool for Wire Ferrules, Обжимные клещи

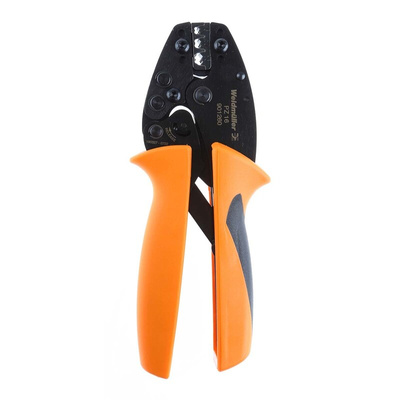

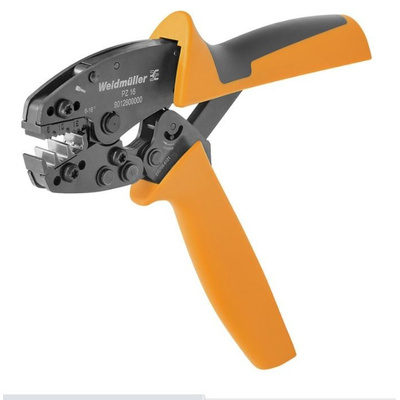

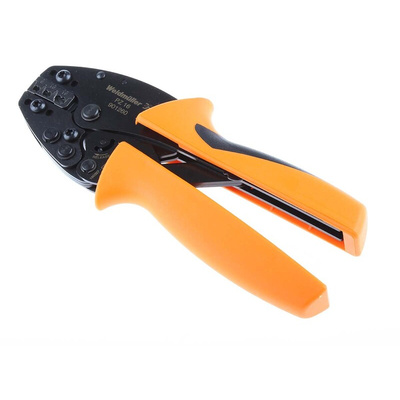

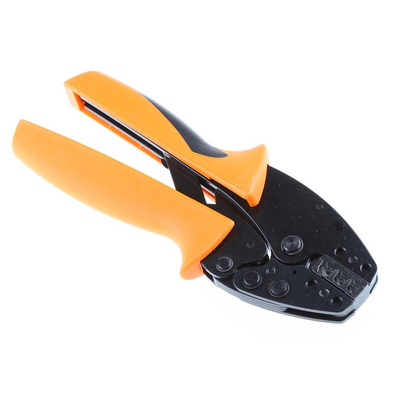

Weidmuller PZ 16 Bootlace Ferrule Crimping Tool

Weidmuller PZ 16 crimping tool for the precise indent crimping of bootlace wire-end ferrules with and without plastic collars according to DIN 46228 Part 1 and 4. This PZ 16 crimping tool features a crimping head with 3 crimping profiles of 6 mm², 10 mm² or 16 mm². Wire end ferrules can be inserted easily from the side. The PZ 16 crimping tool features a ratchet to ensure crimping precision and a release option in case of incorrect operation. The crimps produced by the PZ 16 crimp tool comply with Euro-Norm EN 60947-1. The handles of this crimp tool have an ergonomic design allowing comfortable single-handed operation.

Features and Benefits:
• Ratchet to guarantee precise crimping
• Release option in the event of incorrect operation
• 3 crimping stations
• Ergonomically designed handles
• Crimps comply with EN 60947-1

Typical Applications:
• Maintenance & repair
• Electrical Installations
• Cable assemblies

FAQ’s:
What is the difference between un-insulated and insulated crimp tools?
Un-insulated crimp tools are typically used for general applications, whereas the insulated crimp tools have been VDE tested up to 1000 V, designed for use where electrical current is present.

How do you maintain the product?
• Axles and other movable parts should be regularly lubricated.
• Lubrication* is recommended at least every 10,000 cycles whenever the tool is exposed to contaminants.
• Adjustment of the crimping die nests should also be checked. Readjustment of the pressure adjustment axle is necessary when the pre-load of the tool decreases significantly.

The Importance of a High-Quality Crimp
When a crimping tool is used on a terminal, two crimps take place at the same time. One is the electrical connection between the conductor and terminal. The other is the insulation crimp which provides strain relief against vibration and tension. It is important that the electrical connection is gas-tight without any voids between the wire strands and the terminal. If there any voids present, then corrosion can occur causing resistance and excessive heat which damages the electrical connection. Using a good quality crimping tool will ensure that a full, gas-tight crimp is produced preventing future deterioration of the electrical connection and insulation breakage.

Weidmuller Crimping Tool, Indent Crimping Type, 6 to 16mm² Crimping Range - PZ 16 Series - 9012600000

Clamp down on messy wire ends and neatly terminate your cables with this Weidmuller crimping tool. It features three clamping settings to attach 6mm², 10mm² and 16mm² ferrules to wires, making it an all-rounder for your workplace. To use it, simply insert a stripped cord set with the covering and squeeze the handles together. The indented shape increases conductive contact while protecting the inner components for a long-lasting and secure connection.

• Light weight of 418g for ease of handling during operation
• Compatible with wire-end ferrules with or without plastic collars to suit your needs

Applications

• Manufacturing industry
• Electrical engineering
• Cabling networks

How does a ratcheting crimping tool work?

Ratcheting tools like this one apply a set amount of pressure to produce consistent results you can rely on. It's a go-to option as it takes the guesswork out of cable termination.

How do ferrules protect wires?

Clamping ferrules onto the wire ends seals out air to minimise the risk of corrosion, so your cable connections last longer.
