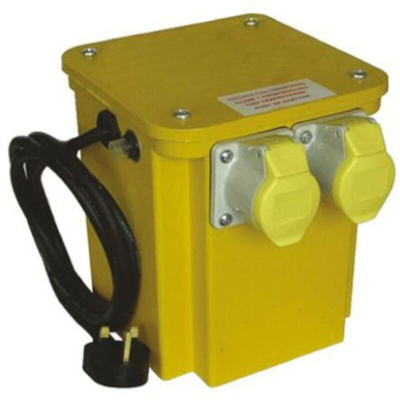

CM40002, Carroll & Meynell Single Phase 2kVA Site Transformer, 230V ac Primary, 112 Secondary, 15A O/P, Трансформатор

Portable Safety Isolating Transformers, 1-phase 230Vac in, 110Vac out

Brought to you by Carroll & Meynell, this high quality portable safety isolating transformers provides safe site electrics for power tools and lighting. Encased in a rugged insulated and splashproof GRP enclosure, this high quality safety isolating transformer is suited for tough conditions.

Features and Benefits:
• Double-wound construction
• Secondary centre-tap earthed to minimise shock risk
• Thermal safety fuse embedded into primary winding
• Resettable thermal cut-out in primary circuit to prevent overload
• Approx. 2m mains cable fitted with UK 13A plug (plug not fitted to CM40002, see Note below)

This range of Portable Safety Isolating Tranformers includes:
• Stock number 260-4244 is a single socket 375VA transformer
• Stock number 260-4250 is a single socket 500VA transformer
• Stock number 260-4272 is a dual socket 750VA transformer
• Stock number 260-4288 is a dual socket 1125VA transformer
• Stock number 260-4294 is a dual socket 1650VA transformer
• Stock number 260-4301 is a dual socket 2000VA transformer

Note

1) CM40002 (260-4301) maximum input current 23A. It is recommended that this unit is connected into a suitably fused high-current circuit. Maximum output must not exceed 16A per socket outlet. VA tool rating is for 25% duty cycle, i.e. 5 minutes on / 15 minutes off
2) The dimensional information given is for the body only and does not account for the protrusion of the sockets from the front of the body

Product Specifications

260-4301 Dimensional Drawing
