M506M, Gossen Metrawatt PROFITEST PRIME AC Multifunction Tester Set

PROFITEST PRIME AC Professional Package – M506M

The PROFITEST PRIME AC Profipaket is a comprehensive set of test and measurement instruments for electrical installations. It includes everything you need to perform a wide range of inspections and measurements according to various standards and regulations.

Features include:

• Measurement in AC/DC systems


• Measurement of internal system resistance and fault loop resistance with high test current


• Low-resistance measurement for protective and equipotential bonding conductors with 200 mA


• Combined RCD test with continuously rising ramp, time to trip, tripping current


• Insulation Measurement up to 1000 V


• Mains and battery operated


• Bluetooth and USB interfaces

Applications

The PROFITEST PRIME is an all-in-one test instrument for electrical equipment in AC and DC systems and can be found in:
New Installations - can be used to verify the effectiveness of protective measures during the commissioning of new electrical installations.
Existing Installations - to periodically inspect and test existing electrical installations to ensure they comply with safety standards and regulations.
Maintenance and Repairs - for identifying potential faults or hazards during maintenance and repair work on electrical installations.
Testing of Low-Voltage Switchgear, Controlgear, and Machines - according to IEC 61439-1 and machines according to IEC 60204-1.
Testing of PV Systems - according to DIN EN 62446-1.
Testing of EV Charging Stations - according to DIN EN 61851-1.

The PROFITEST PRIME AC package includes the following instruments and more:

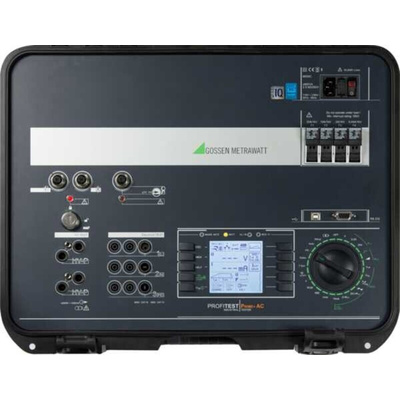

• PROFITEST PRIME AC

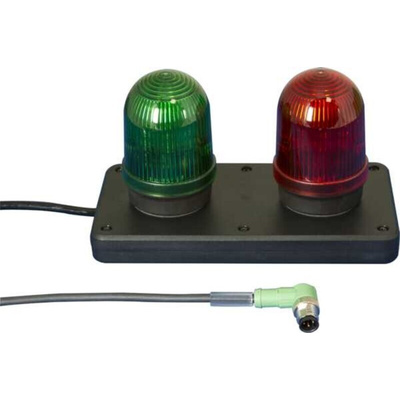

• SIGNAL PROFITEST PRIME AC
• STOP PROFITEST PRIME AC
• KEY PROFITEST PRIME AC
• TROLLEY for hardcase system PRIME

Contains SVHC - 1,3-propanesultone - CAS No. 1120-71-4

Datasheet - M506M
