6.523.012.300, Kübler CODIX 523 Counter, 6 Digit, 10 → 30 V dc, Счетчик часов

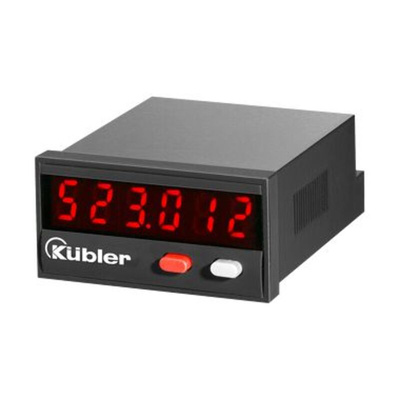

Kubler Digital Hour Meter

The Kubler CODIX 135 series hour meter is a 6-digit LED display, panel-mount counter with screw connection. This is a simple, externally powered, the programmable meter. The counter is operated at voltage rating ranges between 10VDC and 30VDC. The LED display shows the NPN, PNP input signals used for pulse width or time interval measurement. It has an individually adjustable start/ stop function.

Features and Benefits

Totalizer with digital inputs NPN/PNP up to 60kHz
Decimal point selectable
Set up parameters programmable using two front keys
Manual or electrical reset
Optional output is 1Hz clock pulse in case of active time measurement
Panel cut-out dimensions are 22.2mm x 45mm
Measurement range is between 0 and 99999.99
Operation temperature ranges between -20°C and 55°C

Applications

Compressors, solariums, special lights, and lamps
Accessories, OEM equipment or retrofitting to the production machine
Time recording (stopwatch function) at sporting events

Certifications

IP65 rated
