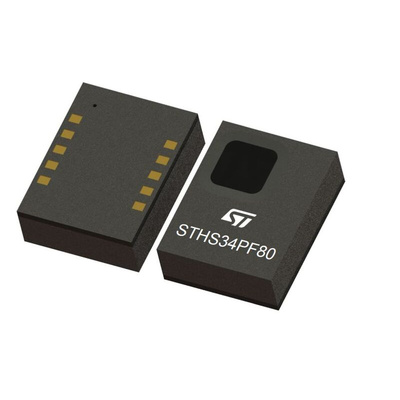

STHS34PF80TR, STMicroelectronics Surface Mount Motion Sensor Module, LGA, Serial-SPI, 10-Pin

Low-power, high-sensitivity infrared (IR) sensor for presence and motion detection

The STHS34PF80 is an uncooled, factory-calibrated, infrared motion and presence detection sensor with operating wavelength between 5 μm and 20 μm.
The STHS34PF80 sensor has been designed to measure the amount of IR radiation emitted from an object within its field of view. The information is digitally processed by the ASIC, which can be programmed to monitor motion, presence, or an overtemperature condition.
Thanks to its exceptional sensitivity, the STHS34PF80 can detect the presence of a human being at a distance up to 4 meters without the need of an optical lens.
The STHS34PF80 is housed in a small 3.2 x 4.2 x 1.455 (max) mm 10-lead LGA package.

All features

Key features

High-sensitivity infrared presence and motion detection sensor
Reach up to 4 meters without lens for objects measuring 70 x 25 cm²
Integrated silicon IR filter
SMD friendly
Capable of detecting stationary objects
Capable of distinguishing between stationary and moving objects
80° field of view
Factory calibrated
Low power
Embedded smart algorithm for presence / motion detection

Electrical specifications

Supply voltage: 1.7 V to 3.6 V
Supply current: 10 μA
2-wire I²C / 3-wire SPI serial interface
Programmable ODRs from 0.25 Hz to 30 Hz
One-shot mode

Sensing specifications

IR sensitivity: 2000 LSB/°C
RMS noise: 25 LSBrms
Operating wavelength: 5 μm to 20 μm
Local temperature sensor accuracy: ±0.3 °C

Package specifications

LGA 10-lead, 3.2 x 4.2 x 1.455 (max) mm
ECOPACK and RoHS compliant

Техническая спецификация
STHS34PF80TR Datasheet
