RS PRO Digital Voltmeter Vdc, LED Bar Graph Display Display

RS PRO Digital Battery Condition Meter, Voltmeter, Screw Clamp Fixing, 48 V dc

Introducing RS PRO Digital LED battery meters, a range of high quality and durable meters used to test and monitor various functions relating to a battery's level of charge, maintenance, battery life or status. RS PRO Digital LED battery meters are ideal for use in maintenance applications with limited space, due to the compact and reliable design. Digital battery meters are a simple and cost-effective way of assessing a batteries condition in real time, helping to maintain battery life and power.

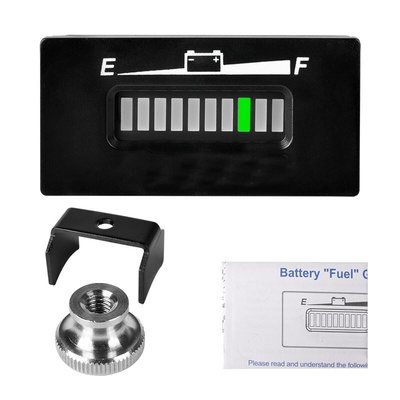

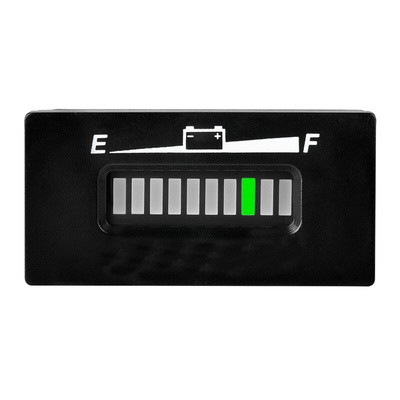

The RS PRO Digital battery condition meter, also known as a battery Fuel meter / gauge, is suitable for use with most Lead-Acid batteries, includes a multi-colour 10 segment LED bar-graph display with a single display mode (bar segment). The LED display consists of 1 x red, 2 x yellow and 7 x green LED’s where each colour level displays the power status with each bar representing a 10% power level. With a wide operating temperature range of -20°C to +65°C, an operating voltage of 48 V dc, housed within an ABS, IP67 rated waterproof casing, quick and easy to fit into a standard panel cut out this RS PRO approved battery meter has a wealth of features and applications.

Features & Benefits

• Battery meter, Battery condition meter


• Suitable for Lead-Acid type batteries


• 48 V dc


• IP67 Waterproof protection front plate


• ABS housing


• Single display mode


• 10 Segment, multi-colour LED bar graph display


• 1 x Red, 2 x Yellow, 7 x Green LED’s


• Display accuracy +/- 10%


• Screw Clamp fixing


• Supplied with 4 x 4 Female fast-on connectors


• Dimensions 18 mm x 24 mm Bezel x 28.3 mm deep


• Panel cut-out 45.5 mm x 22.5 mm


• Quick and easy to read

Applications

• Battery powered vehicles


• Forklift trucks


• Golf buggies and trollies


• Lawn mowers


• Industrial pressure washers


• Various battery powered machines


• Generally to monitor the charge levels of battery powered equipment
