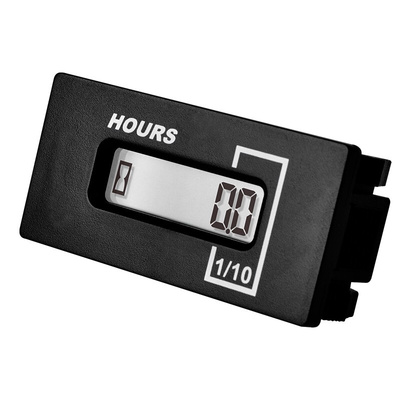

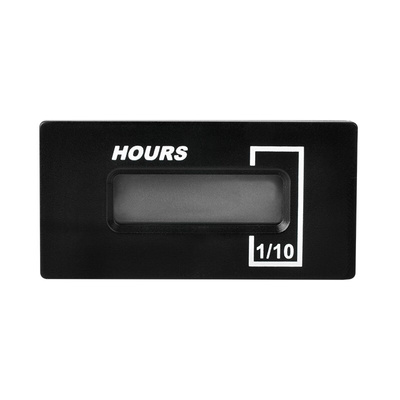

RS PRO Counter, Digital Hour Meter Digital Counter, 6 Digit, 60Hz, 85 V

RS PRO Digital Counter, LCD Hours Run Meter, 6 to 85 V ac, 6 to 60 V dc

Introducing RS PRO range of high quality and reliable Digital LCD hours run meters and counters used to monitor and measure the time your equipment has been running. The monitoring of the hours your machines have been running is important especially for ensuring service of the equipment and for warranty compliance. Digital counters and hours run meters are a simple and effective way of managing machine usage, maintaining equipment and performance.

The RS PRO Digital Counter Hours run counter, also known as hour meters or elapsed time meters, are versatile they can be used in many applications from recreational to construction and industrial. With a 6-digit display running indicator, simple and quick Screw Clamp fixing, wide operating temperature range of -20°C to +65°C, timing accuracy of 0.1 H to 1 H, all housed within an ABS, IP67 rated waterproof casing this RS PRO approved LCD hours run meter has a wealth of features and applications.

Features & Benefits

• Digital counter, Hours run meter


• 6 to 85 V ac, 6 to 60 V dc


• IP67 Waterproof protection


• ABS housing


• 6-Digit LCD display


• Screen display size 25 mm x 7.6 mm


• Accuracy 0.1H / 1H
\t

• Screw Clamp fixing


• Supplied with 4 x 4 Female fast-on connectors


• Dimensions 48 mm x 24 mm Bezel x 28.3 mm deep


• Panel cut-out 45.5 mm x 22.5 mm


• Quick and easy to read

Applications

• Engines, generators, pumps


• Compressors, lawn mowers


• Construction equipment, agricultural machinery


• Recreational vehicles, aircraft, electric vehicles


• HVAC Systems


• Generally to accurately monitor the running time of equipment and machinery

Standards and Approvals

• CE, RoHS, UKCA


• UKCA. SI 2016/1101, SI2016/1091, SI2012/3032


• CE. EN 55032:2015+A1:2020, EN55035:2017+A11:2020


• EN IEC 61000-3-2:2019, EN 61000-3-3:2013 + A1:2019

What else are Hours Run Meters known as?

The digital counters known by many names often this depends on the industry and preferences of users. No matter what they are called, the purpose of the counters is always the same to accurately monitor, track, and display the running time of your equipment for maintenance and performance.

• Hour meter, Run time meter, maintenance meters


• Engine hour meters, service meters, Digital hour counter


• Equipment timer, usage timer, operating hour recorder, run time recorder

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

RS PRO Datasheet
