RS PRO Test Pin 3A

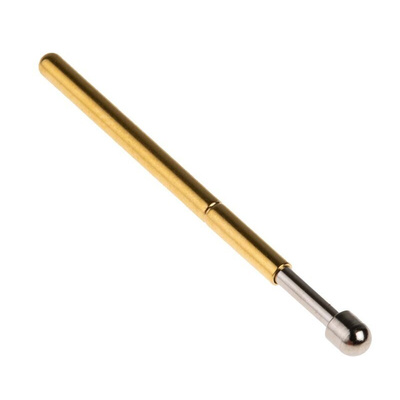

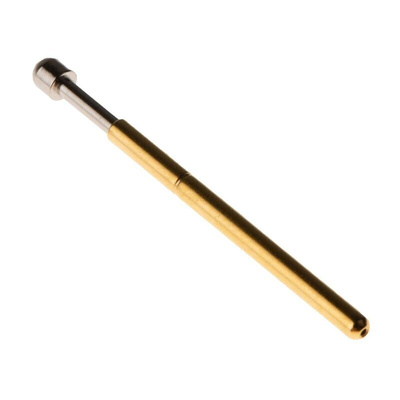

RS PRO 2.54mm Pitch Spring Test Probe With Rounded Tip, 3A

These high-quality spring test probes are designed to test a printed circuit board (PCB). They each come with a spring-loaded probe tip with a rounded head, which provides positive contact without leaving any marks or indentations.

The probes are used with a receptacle that you can order separately. Using separate probes and receptacles makes it easy to replace a damaged probe without disturbing your wiring. Receptacles can be push-fitted into the mounting plate, which provides an airtight seal without the use of any adhesives.

These test probes from the trusted RS PRO come in a pack of five. They're ideal for use on automatic test equipment or on test jigs, where fast testing of multipoint PCBs and sub-assemblies is required. They have a current rating of 3A and contact resistance of 30 mΩ.

Features and Benefits

• Rounded probe tip
• Made of phosphor bronze
• Contact resistance of 30 mΩ
• Current rating of 3 A
• Length of 24.7 mm
• Pitch of 2.54 mm
• Spring pressure of 1.47 N(g)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
