RS PRO Test Pin 1.5A

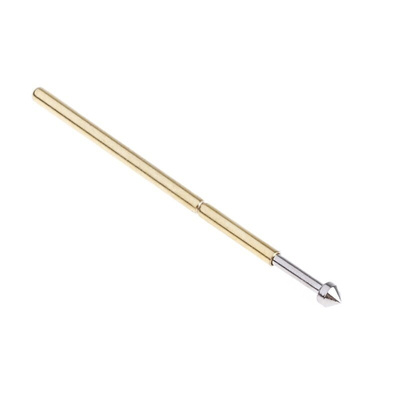

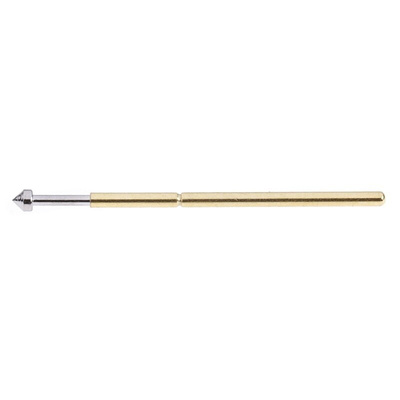

RS PRO 1.27 mm Pitch Spring Test Probe With Point Tip, 1.5 A

This pack of five spring test probes comes from our trusted RS PRO range. That means the components have been thoroughly tested for reliability and consistency. Each probe has a spring-loaded tip with a pointed head and can be used for plated-through holes and contamination-free boards. They're designed to leave no marks or indentations when used.

Made from phosphor bronze, these probes are used to test printed circuit boards (PCBs). You use them with a receptacle that's available separately. Using these together makes it easy to replace a damaged probe without having to reset your wiring. As receptacles push-fit into the mounting plate, they create an airtight seal without the need for adhesives.

You'll find test probes such as these uses on automatic test systems and with test jigs to quickly check the function of multipoint PCBs and sub-assemblies.

Features and Benefits

• Pointed probe head
• Made of phosphor bronze
• Contact resistance of 70 mΩ
• Current rating of 1.5 A
• Pitch of 1.27 mm
• Length of 16.55 mm
• Depth of 1.8 mm
• Mounting hole size of 1.7 mm
• Spring pressure of 1.47 N(g)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
