RS PRO Test Pin 3A

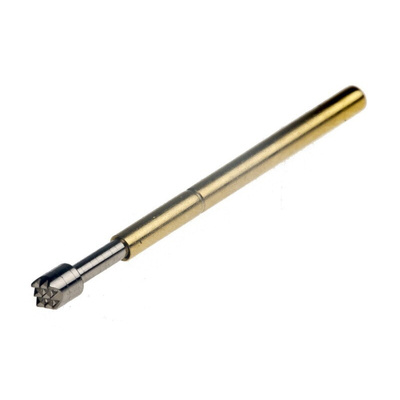

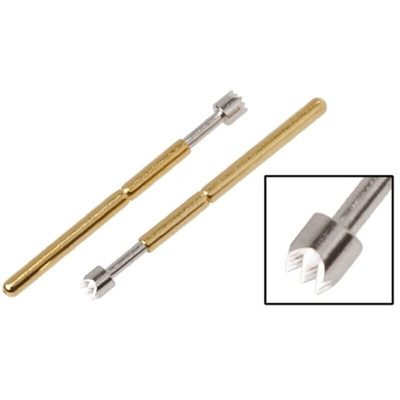

RS PRO 1.9 mm Pitch Spring Test Probe With Crosscut Tip, 3 A

These RS PRO spring test probes come in a pack of five and have been rigorously tested for high performance. Ideal for use with test lands, pads and leads, they have spring-loaded tips and crosscut heads. The sharp, penetrating points provide excellent electrical contact.

The bodies of the probes are made of phosphor bronze and are gold plated for reliable conductivity. Designed for testing printed circuit boards (PCBs), the probes are used with a receptacle, which you can order separately. By using these two components together, you can remove the probe for cleaning or replacement without having to disconnect any cabling. The receptacles are push-fitted to the mounting plate for an airtight seal that's free of adhesives.

You'll find crosscut test probes used across industry and in electrical engineering for the rapid testing of multipoint PCBs.

Features and Benefits

• Crosscut probe tip
• Made of phosphor bronze
• Contact resistance of 30 mΩ
• Length of 17.04 mm
• Pitch of 1.9 mm
• Current rating of 3 A
• Spring pressure of 1.47 N(g)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
