RS PRO Test Pin 3A

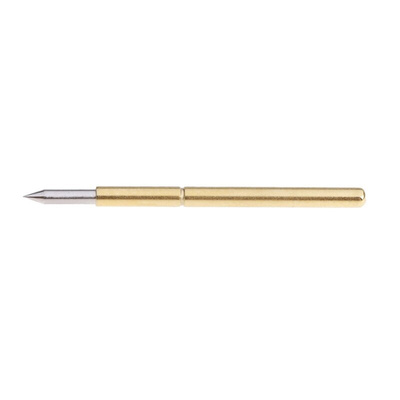

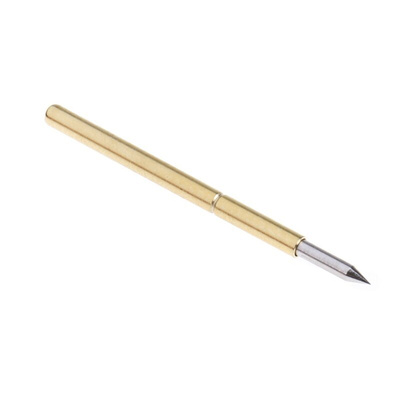

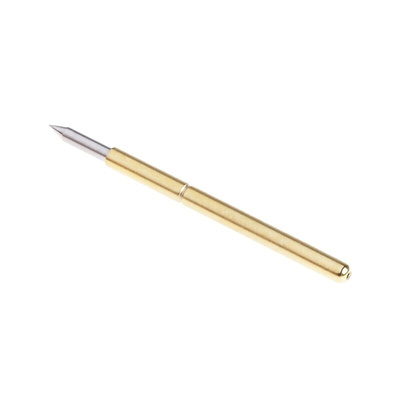

RS PRO 2 mm Pitch Spring Test Probe With Needle Tip, 3 A

When it comes to safely testing out contacts in an electrical circuit, this pitch spring test probe is an essential piece of kit. The probe consists of a spring, a plunger and a tubular barrel. It's been designed to be wired into a receptacle, which can then be housed. Separating the probe and the receptacle in this way allows you to easily replace or repair it in case of damage.

The probe is 16.35 mm in length, allowing you to use its spring-loaded needle tip to safely test contacts from a distance. It's made of a strong and resilient phosphor bronze material. Its gold-plated finish enhances this further whilst also offering excellent conductivity for reliable testing.

You'll typically see this probe used to test printed circuit boards (PCBs ) and electrical components. It can also be used to test batteries and consumer electronics devices such as tablets.

Features and Benefits

• Pitch spring test probe
• Pitch of 2 mm
• Length of 16.35 mm
• Phosphor bronze body material
• Gold plated
• Current rating of 3 A
• Contact resistance of 30 mΩ
• Needle probe tip

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS PRO Datasheet
