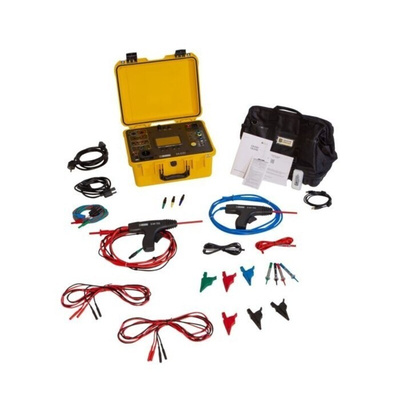

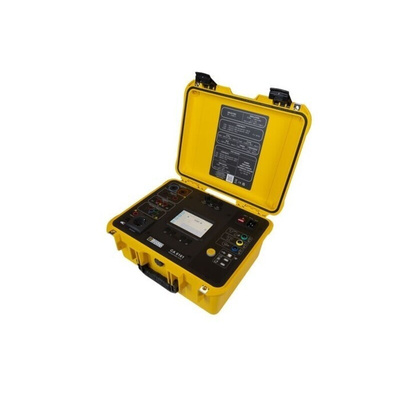

P01145811, Chauvin Arnoux CA 6161 PAT Tester

The CA 6161 multifunctional switchgear tester can be used to carry out all measurements for testing the electrical safety of portable equipment, machines and switchboards. It is therefore ideally suited for testing and certifying the electrical safety of equipment, for end-of-pipe conformity checks, for periodic inspections or for maintenance.
The CA 6161 is very easy to use thanks to its colour touch screen, online help with connection diagrams for each function, and an HMI based on the selection of self-explanatory icons for the chosen functionality.
The CA 6161 machine controller has a four-key keypad for quick access to certain functions in any context: printing a measurement on the sticker printer, displaying help screens for the current function, returning to the main screen, and returning to the previous menu.
It integrates easily into test environments, with multiple connection options to the test object, auto-detection of connected devices such as a remote control foot pedal, a 4-light signal tower, a barcode reader and RFID transponder, and a sticker printer.
The CA 6161 stores up to 100,000 tests. PC-based software transfers test data via USB or Wi-Fi for analysis and reporting.
The on-board software can be easily updated in a few minutes via USB stick.

Strengths :
- Tests according to regulatory standards
- Automatic customizable scripts
- Colour touch screen usable with gloves
- Multilingual interface
- Customizable visual inspections
- 3 kV dielectric, 1 GΩ insulation, 10 A continuity tests
- 6 mA to 1000 mA DDR test
- Direct & differential leakage current
- Discharge time
- Automatic pass/fail sticker printing
- Interfaces to barcode, RFID, remote control and lamps
- Stores up to 100,000 tests
- 1 x USB-B and 2 x USB-A ports
- Wifi communication
- PC based software for analysis and report generation
- On-board software update via USB stick

CA 6161 has the following characteristics:
- 2F/4F continuity 0.1A, 0.2A, 10A, voltage drop ∆U
- Insulation 1GΩ
- Dielectric test 3kV
- DDRs test A, AC, B, B+, F, EV
- Loop impedance and line impedance
- Direct leakage current
- Differential leakage current
- Single and three-phase power
- Current clamp measurement
- Phase rotation test
- Discharge time

Warning
type":"Warning",

Schuko plug : This plug can be replaced by a plug suitable for your
country
