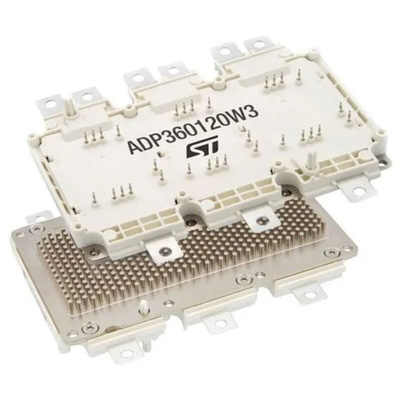

STMicroelectronics ADP360120W3 6, SiC Power Power Switch IC, ECOPACK

The STMicroelectronics compact six-pack module optimized for hybrid and electric vehicles traction inverter. This power module features switches based on silicon carbide Power MOSFET 3rd generation, are characterized by very low RDS(on), very limited switching losses and outstanding performances in synchronous rectification working mode. This will ensure superb efficiency in final application, saving battery recharging cycles. A copper base plate with pin-fin base structure make direct fluid cooling available for this power module minimizing thermal resistance. A dedicated pin-out has been developed to get the best switching performances and press-fit pins will ensure optimal connection with driving board.

AQG 324 qualified
1200 V blocking voltage
Maximum operating junction temperature TJ = 175 °C
Very low switching energy
Low inductive compact design for an higher power density
Si3N4 AMB substrate to improve thermal performance
SiC Power MOSFET chip sintered to substrate for improved lifetime
4.2 kV DC 1 s insulation
Directly liquid cooled base plate with pin-fins
Three integrated NTC temperature sensors

Datasheet - ADP360120W3
