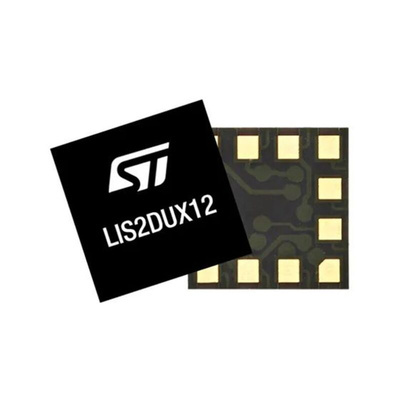

LIS2DUX12TR, STMicroelectronics 3-Axis Surface Mount Accelerometer, LGA, SPI, 12-Pin

Ultra-low-power 3-axis digital smart accelerometer with AAF

The STMicroelectronics smart, digital, 3-axis linear accelerometer whose MEMS and ASIC have been expressly designed to combine the lowest current consumption possible with features such as always-on anti-aliasing filtering, a finite state machine (FSM) and machine learning core (MLC) with adaptive self-configuration (ASC). The FSM and MLC with ASC deliver outstanding always-on, edge processing capabilities. Slave interface and embedded 128-level FIFO buffer complete a set of features that make this accelerometer a reference in terms of system integration from a standpoint of the bill of materials, processing, or power consumption. It has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1.6 Hz to 800 Hz. It has a dedicated internal engine to process motion and acceleration detection including free-fall, wake-up, single/double/triple-tap recognition, activity/inactivity, and 6D/4D orientation.

• Four operating power modes

• Ultralow power consumption

• ODR from 1.6 Hz to 800 Hz

• Embedded machine learning core

• Programmable finite state machine

• Embedded temperature sensor

• High-speed I2C/SPI/MIPI I3C digital output interface

• Advanced pedometer, step detector and step counter

• Significant motion detection, tilt detection

• Self-test

Low power [LP]: 6.2 μA @ 50 Hz ODR with AAF on
Low noise [LP]: 220 μg/√Hz
Embedded digital functions: tap / double tap recognition, free fall detection, 6D/4D orientation
Programmable interrupts
Anti alias filter in low power mode
Machine Learning Core (2.0) and FSM
Advanced interfaces: I2C, SPI & I3C 1.1
Ultra-thin package

Datasheet - LIS2DUX12TR
