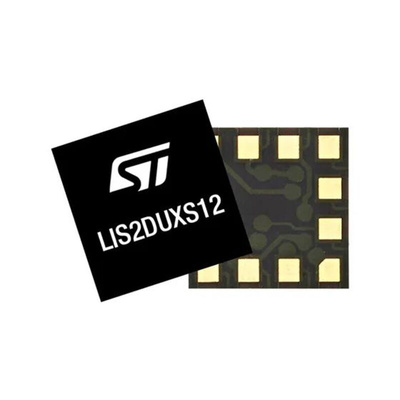

LIS2DUXS12TR, STMicroelectronics 3-Axis Surface Mount Accelerometer, LGA, 12-Pin

Ultra-low-power 3-axis digital smart accelerometer with AAF and Qvar

The STMicroelectronics smart, digital, 3-axis linear accelerometer whose MEMS and ASIC have been expressly designed to combine the lowest current consumption possible with features such as always-on anti-aliasing filtering, a finite state machine (FSM) and machine learning core (MLC) with adaptive self-configuration (ASC), and an analog hub / Qvar sensing channel. The FSM and MLC with ASC deliver outstanding always-on, edge processing capabilities, while the analog hub / Qvar sensing channel defines a new degree of system optimization. It has a dedicated internal engine to process motion and acceleration detection including free-fall, wake-up, single/double/triple-tap recognition, activity/inactivity, and 6D/4D orientation.

Four operating power modes
Ultralow power consumption
ODR from 1.6 Hz to 800 Hz
Embedded machine learning core
Programmable finite state machine
Integrated analog hub / Qvar sensing channel
Embedded temperature sensor
High-speed I²C/SPI/MIPI I³C digital output interface
Advanced pedometer, step detector and step counter
Significant motion detection, tilt detection
Self-test

Anti alias filter in low power mode
Machine Learning Core (2.0) and FSM
Qvar 2.0
Advanced interfaces: I²C, SPI & I³C 1.1
Ultra-thin package
Low power [LP]: 6.2 μA @ 50 Hz ODR with AAF on
Low noise [LP]: 220 μg/√Hz
Embedded digital functions: tap / double tap recognition, free fall detection, 6D/4D orientation
Programmable interrupts

LIS2DUXS12TR Datasheet
