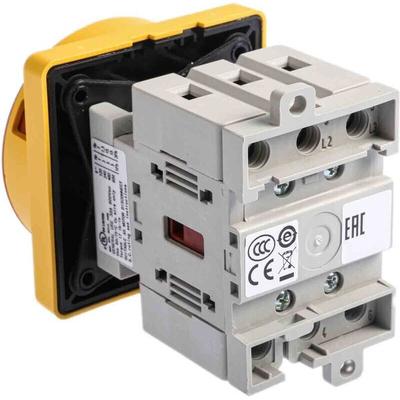

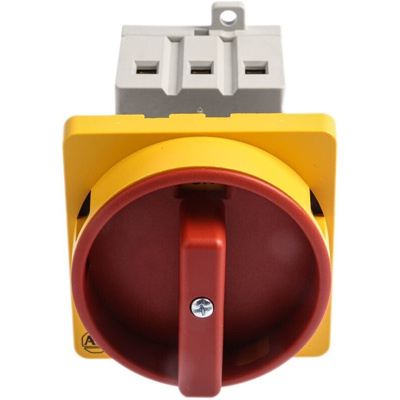

194E-E32-1753-6N, Allen Bradley 3 Pole Panel Mount Non Fused Isolator Switch - 32 A Maximum Current, 15 kW Power Rating, IP65

Switch Disconnectors (Front Mounting)

These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL,CSA approved. A full range of accessories is available.

Manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos

Note

Refer to product description AC23A rating for Technical Specification differential. 3 pole versions supplied complete with handle.

Allen Bradley MCS Range

The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice, all switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.

194 Series Control & Load Switches Data Sheet

UL E14841
