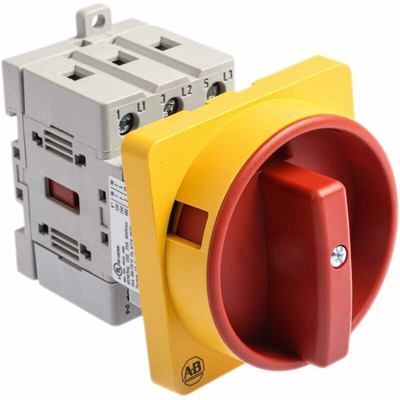

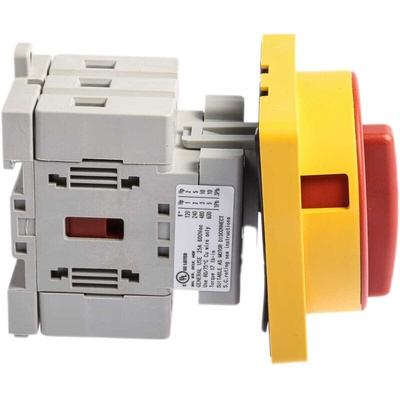

194E-A25-1753-6N, Allen Bradley 3P Pole DIN Rail Isolator Switch - 25A Maximum Current, 11kW Power Rating, IP66

Allen Bradley Switch Disconnectors (Base Mounting)

These switches fully conform to IEC204, VDE 0660 and IEC947 and are UL, CSA approved. They are manufactured from thermo-resistant and self-extinguishing materials (UL94-VØ) which are free from Cadmium, Halogen and Asbestos.

194E-A25-1753-6N IEC OFF-ON Load Switch

Ensure safe and reliable electrical circuit breaking with the 194E-A25-1753-6N Non-Fused Switch Disconnector by Allen Bradley. With this isolator unit the circuitry is interrupted via simple rotation of the rotary handle, acting as a safety measure.

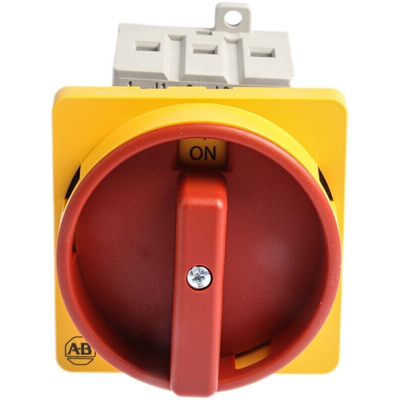

The 194E-A25-1753-6N IEC Load Switch has an 11kW power rating, 25 A maximum current, and 3 Poles. It features OFF-ON 90° configuration. It also has a finger-proof body for improved protection against risk of electric shock. The housing offers easy identification as it has a yellow legend plate and red knob. The actuator is sealed to IP65 which ensures that it is both dust and water-spray proof.

This ergonomic two-position switch is suitable for connecting and disconnecting an electrical supply and is highly dependable. The 194E range can be used for control applications such as energising solenoids, relays, actuators, magnetic starters, and valves. These versatile units can also be used for power applications such as manual control of direct-on-line motors and isolation of motor branch circuitry.

Features and Benefits:

• Suitable as At-Motor Disconnect Switch (UL508)
• Type N Red/Yellow Actuator
• Base/Din Rail installation
• IP2LX Finger-Safe Terminals
• Positive-Guided Actuation
• Same operating handle as the Allen Bradley Bulletin 194L range

What is a Non-Fused Switch Disconnector?

A Non-Fused Switch Disconnector is an electrical safety component which is used to cut power to isolated parts of a circuit, in order to power it down and allow for servicing and maintenance. Instead of using fuses to break the circuit, this type of switch disconnector uses a rotary switch or knife-blade disconnect. This makes them easier to reset as they do not require replacement fuses.

Rockwell Automation is a global leader in industrial automation and digital transformation, and brings smart manufacturing to life. With a long legacy of creating Allen-Bradley® integrated control and information solutions, we help make you as productive as possible. Our portfolio of sensing, safety and motor management products can support your move towards smart machine applications. Allen-Bradley® IO-Link sensors are data-enabled and communicate with all field buses, providing diagnostic and health information about the device before a machine stops, and enabling quick production changeovers through fast parameter downloads from PLCs into the device. This reduces machine downtime and increases manufacturing OEE. For safety components, products with built-in diagnostics simplify the set-up of the smart device, and reduce maintenance, leading to a more efficient, machine data-driven approach.

Allen Bradley MCS Range

The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
