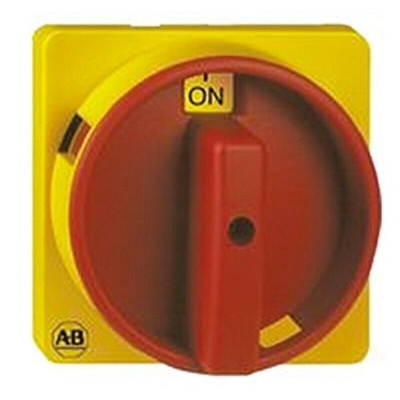

194L-HE8N-175, Allen Bradley Red/Yellow Rotary Handle

Optional Handles for Switch Disconnector (Base Mounting)

Standard, Main switch, and Emergency types
Red/Yellow switch available in two sizes – 67 x 67mm, and 90 x 90mm
Grey/black switch is 67 x 67mm
Each will accept 3 padlocks
IP65 rating

Note

Extension shafts stock nos. 261-8338 and 261-8344 may be used with these handles ( See preceding products price table).

Allen Bradley MCS Range

The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
