194L-HE6G-175, Allen Bradley Black/Grey Rotary Handle

Optional Handles for Switch Disconnector (Base Mounting)

Standard, Main switch, and Emergency types
Red/Yellow switch available in two sizes – 67 x 67mm, and 90 x 90mm
Grey/black switch is 67 x 67mm
Each will accept 3 padlocks
IP65 rating

Note

Extension shafts stock nos. 261-8338 and 261-8344 may be used with these handles ( See preceding products price table).

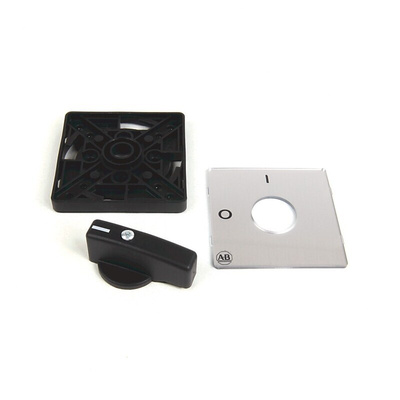

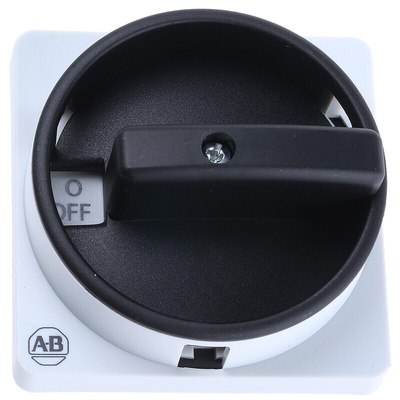

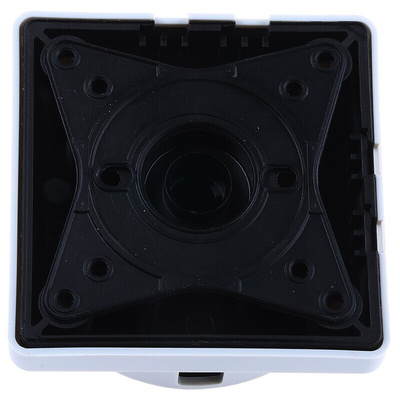

Allen Bradley Handle For Use With 194E Series Isolator Switch, Rotary Dial Actuator, 3 Locks - 194L-HE6G-175

This handle from Rockwell Automation's Allen Bradley range combines with an isolator switch (261-7672) to safely disconnect your equipment. It supports switches rated between 25 and 100A, allowing it to quickly disconnect demanding electrical loads. The actuator's rotary dial shape has a low mounting profile to reduce the risk of accidental switching. Support for up to three padlocks means the device locks in place when deactivated to prevent unauthorised tampering and disruption of your machines.

• IP65 rating indicates total protection against dust and low-pressure water jets for indoor and outdoor use
• Integrated legend plate indicates off/on status for quick system inspections
• Screw fixing secures connection against vibrations
• Square 67mm face dimensions provide a large actuator surface for easy switching

Standards and Certifications

• CE
• UKCA
• UL

How do I safely use this isolator switch handle around hazardous machinery?

You can use this rotary dial with an extension rod (261-8338) to ensure safe use around hazardous appliances.

Does the handle come with padlocks?

No, the actuator doesn't come with padlocks, so you can choose the best options for your setup.

Allen Bradley MCS Range

The 194E switch disconnector range forms part of the Modular Control System (MCS) 9mm grid system and similarly features compact design, modularity and extensive choice. All switch materials can be recycled. Universal terminal screws are fitted for ’Pozidriv’ or flat blade screwdriver. The switching category is AC23A.
