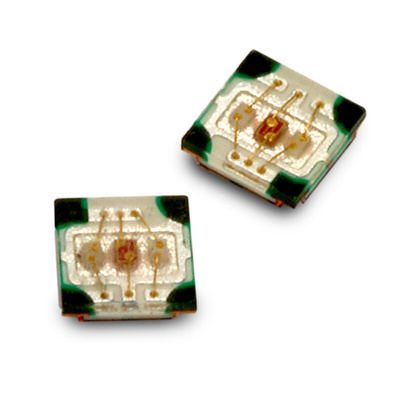

Broadcom RGB LED Chip LED SMD, HSMF-C115

Avago HSMF-C113/4/5/8 Series LEDs

The HSMF-C113/4/5/8 series, from Avago Technologies, are right angle tri-colour ChipLEDs. This family of LEDs are designed in a compact, right angle package containing 3 dies. With the option of any colour combination from mixing the 3 primary colours. This allows the user to creat a wide variety of colours to suit all applications and product themes.
Due to the small package size and low profile, the HSMF-C113/4/5/8 LEDs are ideal for back-lighting, status indication and front panel illumination applications. Other suitable applications include office automation, home appliances and industrial equipment.

Features of the HSMF-C113/4/5/8 LEDs:
- Three dies in one small package
- Red/green/blue colour combination
- Common anode
- Diffused optics
- Compatible with reflow soldering
- Low profile package suitable for backlighting applications
- Untinted, diffused

The Broadcom tricolor chip-type LED is designed in an ultra small package for miniaturization. It is the first of its kind to achieve such small packaging for 3 dies. With the freedom to have any combination of colors from mixing of the 3 primary colors, this will yield a wide variety of colors to suit every application and product theme.

Common anode
Small 2.5 x 1.0 x 1.0 mm package
Diffused optics
Available in 8 mm tape on 7 diameter reels
High brightness using AlInGaP and InGaN die technology
Compatible with reflow soldering

Visible Light LEDs, Avago Technologies

Datasheet - HSMF-C115
