LC1SKGC200U7, Schneider Electric LC1S Series Contactor, 230 V ac Coil, 2-Pole, 5 A, 2.2 kW, 2NO, 690 V ac, Контактор

Schneider Electric | LC1D TeSys K Mini Series | Contactors

TeSys K Miniature Contactors from Schneider Electric combine long mechanical and electrical life to offer a high reliable contactor. The TeSys SK contactors offer quick simple setup while maintaining compliance with international standards. A special armature structure design allows all devices in the range to have the same physical size and panel footprint for convenience.

Features and Benefits

• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Coil with rectifier incorporated
• Easily installed accessories
• Instantaneous auxiliary contact
• Flexible control circuit to suit a wide range of applications
• High-fault short circuit current ratings provide the flexibility to select any component

Applications:

• Industrial control systems
• Switching contractors or relay coils
• Powering control and signalling switches

What does the utilisation category AC1 and AC3 mean for the TeSys contactors?

Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.

Is the TeSys SK range a double break pole type contactor?

Yes the TeSys SK range uses linear translation movement that provides double breaking of the poles.

Approvals

UL, CSA

Standards

IEC947, VDE0110, NFC63-110

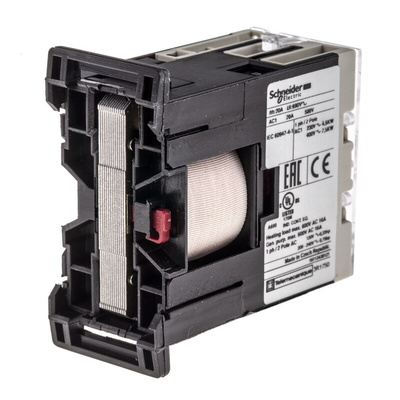

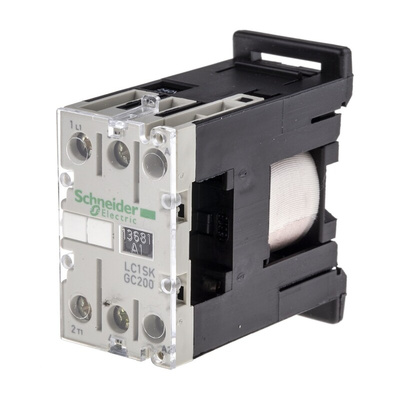

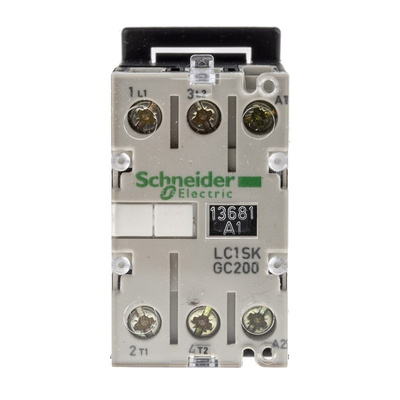

Schneider Electric LC1SKGC200U7 Miniature Contactor

The LC1SKGC200U7 is a miniature 2 pole contactor featuring a 240 V ac operating coil and an AC-3 full load current of 5 A.

UL E164862

SK Range Launch Catalogue

E48539 UL Report

Datasheet

Green Premium - Product Environmental Profile

Product Environmental Profile
