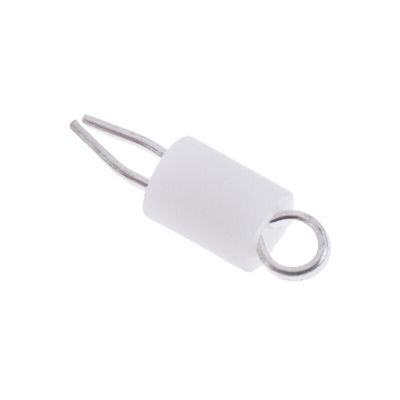

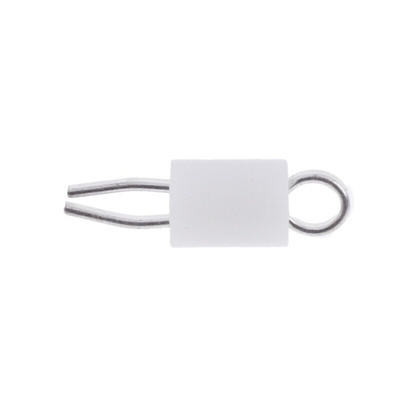

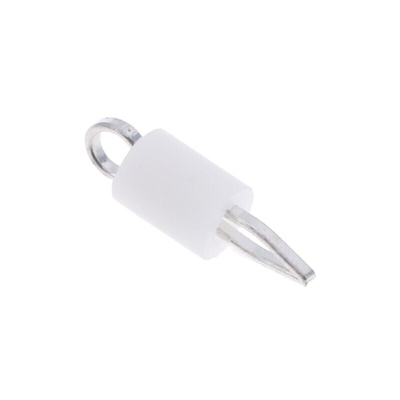

RS PRO 1mm White Terminal Post

RS PRO 1 mm White Test Terminal

These test terminals are used to fix wires in electronic equipment. Use them in amplifiers and speakers, as well as in measuring and testing equipment in industrial and laboratory settings.

This RS PRO white terminal is suitable for use with printed circuit boards (PCBs) featuring holes of 1 mm diameter. The inbuilt spring action is strong enough to make sure that the legs make solid contact with the interior of the holes, which helps with secure placement before soldering. It also prevents through-hole damage. The white borosilicate glass bead is suitable for high temperatures and the tinned phosphor bronze terminals are easy to solder.

The terminal post complies with RoHS (Restriction of Hazardous Substances) standards as it contains levels of hazardous substances below 0.1%. It also meets European and US ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.

Features and Benefits

• Body material of phosphor bronze
• Insulated
• White in colour
• Hole diameter of 1 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
