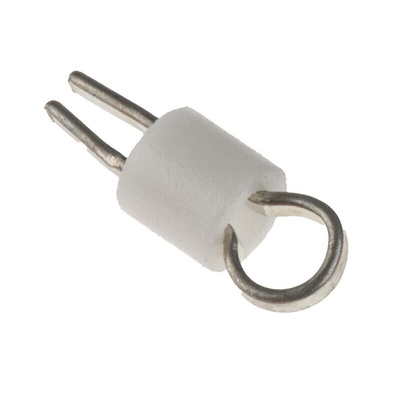

RS PRO 1.32mm White Terminal Post

RS PRO 1.32 mm White Test Terminal

This RS PRO test terminal is suitable for fixing test probes or discrete wires. It can be used in diverse environments across electronic equipment including speaker cables and amplifiers, as well as test and measurement tools in research or industry.

This terminal post is for printed circuit boards (PCBs) with 1.32 mm diameter holes. To avoid through-hole damage, and to ensure a reliable fit within the hole during the soldering, the terminal post uses a strong spring action. The white borosilicate glass bead resists high temperatures and the pre-soldered phosphor bronze terminals help make the soldering process speedy and easy.

The terminal post contains less than 0.1% concentration of hazardous substances, making it RoHS (Restriction of Hazardous Substances) compliant. It also meets the requirements of the ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.

Features and Benefits

• Body material of phosphor bronze
• Insulated
• White in colour
• Hole diameter of 1.32 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant
