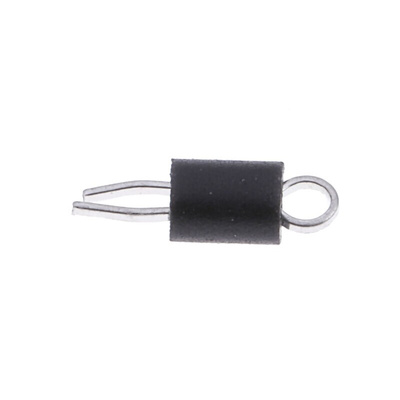

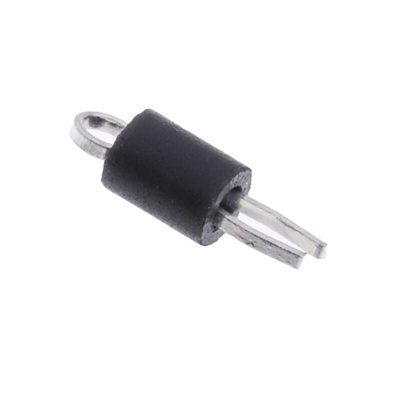

RS PRO 1mm Black Terminal Post

RS PRO 1 mm Black Test Terminal

This RS PRO test terminal is suitable for a wide range of applications. You can use it for electronic equipment like amplifiers and speaker cables, or test and measurement equipment found in industrial settings. The terminals are suitable for attaching test probes or for fixing discrete wires.

This 1 mm black terminal is designed for use with PCBs (printed circuit boards) with 1 mm holes. Its strong spring action ensures the legs make good contact with the sides of the hole for a reliable fit and accurate placement pre-soldering. The action also prevents through-hole damage. The phosphor bronze terminals are pre-tinned, making the soldering process quicker and easier.

Levels of hazardous substances are below 0.1%, in compliance with EU guidelines. The test terminals also conform to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 electrostatic control standards.

Features and Benefits

• Body material of phosphor bronze
• Insulated
• Black in colour
• Hole diameter of 1 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Datasheet
