RS PRO 1mm Red Terminal Post

RS PRO 1 mm Red Test Terminal

You can use this RS PRO test terminal in many industrial and research settings to attach test probes or to fix separate wires. It's commonly used with electronic equipment ranging from speakers and amplifiers to scientific measuring equipment.

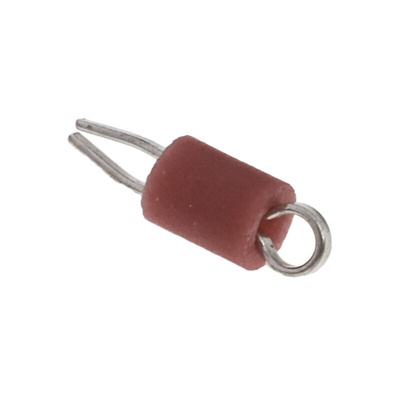

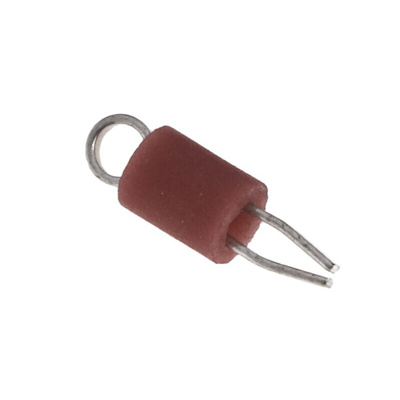

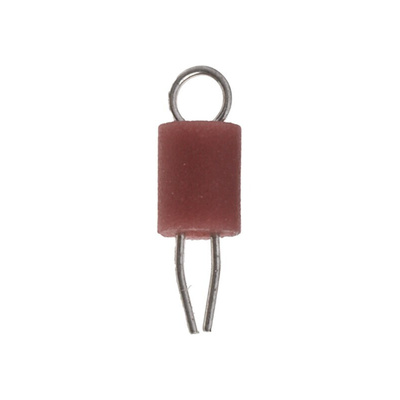

This red terminal post is for printed circuit boards (PCBs) with holes of 1.32 mm diameter. The spring action presses the terminals against the sides of the hole, maintaining a solid fit before soldering, with no through-hole damage. The red borosilicate glass bead is resistant to high temperatures and the solder-tinned phosphor bronze terminals are easy to fit.

The terminal post meets RoHS (Restriction of Hazardous Substances) requirements, so contains restricted materials in concentrations under 0.1%. US and European standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 for electrostatic control are also met.

Features and Benefits

• Body material of phosphor bronze
• Insulated
• Red in colour
• Hole diameter of 1 mm
• Conforms to ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 Electrostatic Control Standards
• RoHS (Restriction of Hazardous Substances) compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

Test Terminal Datasheet
