RTF-5010, Kingbright 9.5mm Diameter LED Holder for use with Through-Hole LED

LED Mount Bezels RTF Series

The RTF series, from Kingbright, are a family of LED bezels. This range of black nylon housings are for use with through hole LEDs in various sizes. Their black plastic surface offers a high contrast to the LED light output. LED bezels are cost effective way improve the appearance of the LED in its chosen application. The RTF LED bezels are suitable for use in back panel illumination, circuit board indicators and LED indicator applications.

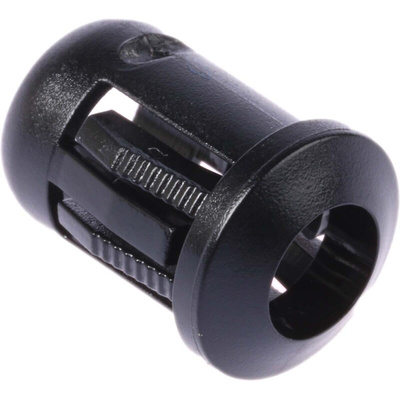

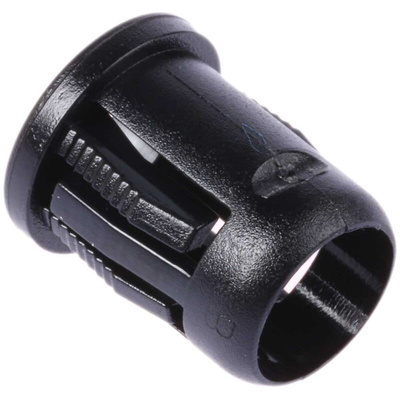

The Kingbright RTF-5010 is a black LED holder for 5mm (T-1 ) THT LEDs, providing a bezel of approximately 2.2mm around the edge of the LED. The RTF-5010 is designed to be mounted into a panel and requires a hole of 8.1mm in diameter.
The RTF-5010 is made from a type 66 nylon. Nylon 66 is a rigid material which offers chemical resistance and stability under heat.
