RS PRO PCB Mounting Thermocouple Connector for Use with Thermocouple, Miniature, IEC Standard

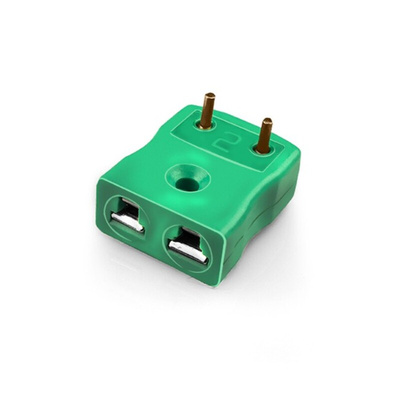

RS PRO IEC Colour Coded Miniature PCB Mount Thermocouple Socket Connector (Type K)

A miniature thermocouple socket connector suitable for use with Type K thermocouples. The thermocouple connector features solid Brass pins for easy PCB mounting, simple screw terminals and contains provision for a CJC (Cold Junction Compensation) sensor.
IEC colour coded and clearly marked with the polarity clearly on the housing for easy and quick identification helping prevent accidental cross or disconnection.
The PCB thermocouple socket is constructed from robust Glass filled Thermoplastic with Nickel Chromium contacts for a tough and reliable impact resistant plug able to withstand temperatures of -35 to +220°C.
A compact and easy install thermocouple connector perfect for PCB mounting.
Supplied in packs of 25, for packs of 1 see RS PRO 381-7564

Features and Benefits

Miniature thermocouple socket
Suitable for Type K thermocouple
PCB mount
IEC colour coding for quick and easy identification
Solid Brass PCB pins for direct board mounting
Provision for CJC sensor
Constructed from Glass filled thermoplastic
Able to withstand temperatures of 220°C
Compatible with flow solder assembly
For use with stranded or solid wires
Polarity clearly marked on housing

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:381-7564
Large Pack Size:262-3107
