RS PRO Panel Mount Thermocouple Connector for Use with Thermocouple, Miniature, ANSI Standard

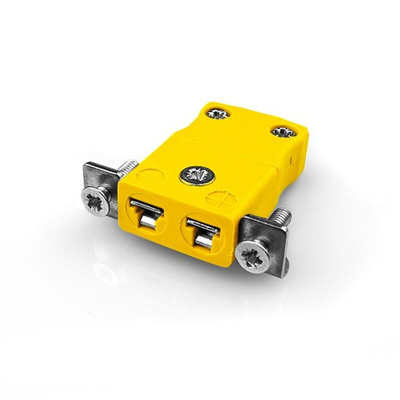

RS PRO ANSI Colour Coded Miniature Thermocouple Socket Connector (Type K)

A panel mount miniature thermocouple socket connector featuring polarised contacts ideal for general purpose applications and suitable for use with Type K thermocouples. Designed with a simple screw down wiring connection for easy wire termination.
ANSI colour coded and clearly marked with the polarity clearly on the housing for easy and quick identification helping prevent accidental cross or disconnection.
The thermocouple socket is constructed from robust Thermoplastic with a Stainless Steel bracket for a tough impact resistant socket able to withstand temperatures of -35 to +220°C.
An easy to connect tough thermocouple connector suitable for use in harsh industrial environments.
Supplied in packs of 5, for packs of 1 see RS PRO 769-1121
For a compatible plug see RS PRO 262-3135

Features and Benefits

Thermocouple connector socket
For use with Type K thermocouples
Suitable for wire diameters up to 4mm
Panel mount
Stainless Steel bracket
ANSI colour coded
Made from robust thermoplastic
Able to withstand temperatures of 220°C
For use with stranded or solid wires
Screw terminals
Polarity clearly marked on housing

Standards and Approvals: BS EN 50212:1997, RoHS

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:769-1221
Large Pack Size:262-3142
