RS PRO PT100 RTD Sensor, 2mm Dia, 10mm Long, 2 Wire, Chip, Class A +500°C Max

2623175
Производитель: RS PRO
Цена за шт. (норма упаковки 10 шт)
1782.30 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

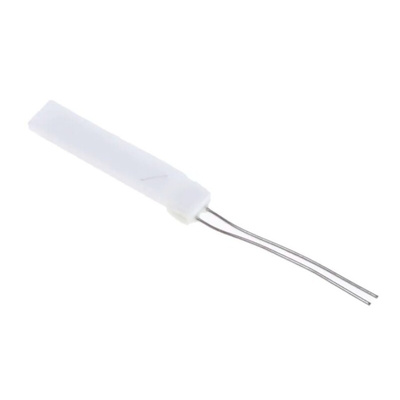

RS PRO Thin Film Pt100 Resistance Temperature Detector (10 x 2mm)

An accurate and reliable thin film Pt100 RTD (Resistance Temperature Detector) often referred to as a PRT (Platinum Resistance Thermometer) with a flat design perfect for measuring surface temperature.
The RTD temperature sensor features a low-profile build offering excellent shock and vibration resistance and the Platinum construction offers excellent response times to temperature changes and high levels of resistivity.
Suitable for surface measurement and immersion when used with the proper protection the Pt100 sensors are suitable for a wide range of applications and environments due to their excellent levels of reliability including in laboratories, air conditioning and refrigeration management, chemical processing and the automotive industry.
Supplied in packs of 10, for packs of 1 see RS PRO 362-9799

Features and Benefits

Platinum Thin Film RTD
Class A tolerance
Temperature sensor resistance of 100Ω
High stability and accurate output
Linear output over a wide operating range
A fast thermal response time of 0.4s
Resistant to vibration and shock
Temperature measurement range from -50 to +500°C
10 mm lead wires

Standards and Approvals: IEC 60751

What is an RTD?

An RTD is a type of temperature sensor based on the correlation between metals and temperature. As the temperature of a metal increases so does the resistance to the flow of electricity. This resistance is then measured and converted to a temperature reading.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:362-9799
Large Pack Size:262-3175

Техническая спецификация
pdfRS PRO Datasheet
pdfRS PRO Datasheet
Время отклика:
0.4s
Диаметр зонда:
2мм
Длина зонда:
10мм
Количество проводов:
2
Максимальная температура зондирования:
+500°C
Материал щупа:
Platinum
Минимальная температура зондирования:
-50°C
Соединение с процессом:
Chip
Тип выводов:
Припой
Тип датчика:
PT100
Точность:
Class A
