RS PRO PT100 RTD Sensor, 0.8mm Dia, 15mm Long, 2 Wire, Probe, Pack A +650°C Max

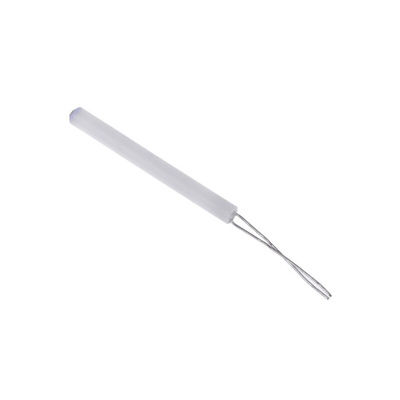

RS PRO Wire Wound Pt100 Resistance Temperature Detector (0.8 x 15mm)

A high quality and reliable wire wound Pt100 RTD (Resistance Temperature Detector) often referred to as a PRT (Platinum Resistance Thermometer) featuring a spiral wound wire designed to expand and contract in response to temperature changes for a highly accurate temperature reading.
The RTD temperature sensor features a cylindrical design perfect for insertion into tubes or sheaths or immersion readings and is constructed from Platinum for its excellent response time to temperature changes and high levels of resistivity.
Suitable for a wide range of applications and environments due to their high level of reliability including in laboratories, air liquid and gas measurement, chemical processing, and the automotive industry.
Supplied in packs of 5, for packs of 1 see RS PRO 611-7873

Features and Benefits

Platinum Wire Wound RTD
Class A tolerance
High reliability and accurate output
A fast thermal response time of 0.4s
Temperature resistance of 100Ω
Temperature measurement range from -200 to +650°C
10 mm lead wires

Standards and Approvals: IEC 60751

What is an RTD?

An RTD is a type of temperature sensor based on the correlation between metals and temperature. As the temperature of a metal increases so does the resistance to the flow of electricity. This resistance is then measured and converted to a temperature reading.

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:611-7873
Large Pack Size:262-3185
