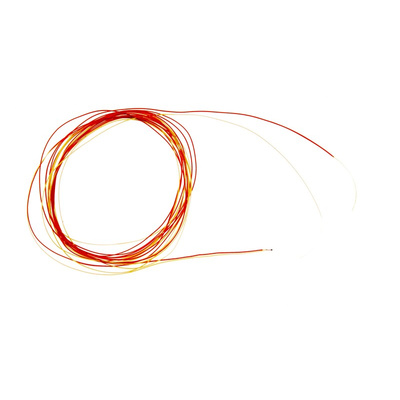

RS PRO Type K Thermocouple 1m Length, 0.076mm Diameter, -75°C → +260°C

RS PRO ANSI Colour Coded Exposed Junction Thermocouple (Type K)

A type K thermocouple featuring an exposed junction and PFA insulated fine gauge wire ideal for test and measurement applications.
The type K thermocouple is constructed with a PFA insulated cable and bare leads and is capable of operating at temperature range of -75 to +260°C for a reliable ANSI thermocouple suitable for a wide range of applications.
Featuring ANSI colour coding the type K thermocouple can be quickly identified and features an exposed junction for direct process insertion offering high levels of sensitivity and fast response times.
Supplied in packs of 25, for packs of 1 see RS PRO 397-1589

Features and Benefits

Type K thermocouple
ANSI colour coded
Exposed junction
Conductor core/ strands of 0.076mm
Cable length of 1m
PFA insulation
Able to withstand temperatures of 260°C
Ideal for test and measurement applications

Standards and Approvals: IEC-584-3

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:397-1589
Large Pack Size:262-3210
