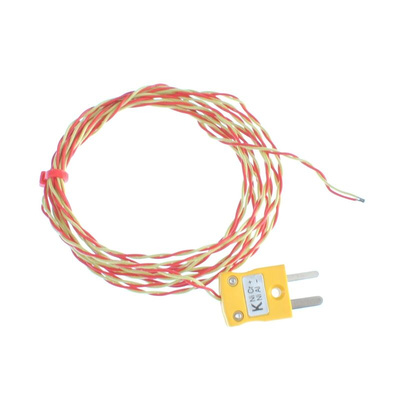

RS PRO Type K Thermocouple 1m Length, 1/0.2mm Diameter, -75°C → +250°C

RS PRO ANSI Colour Coded Exposed Junction Miniature Thermocouple Connector (Type K)

A miniature type K thermocouple plug connector featuring polarised contacts and an exposed junction PFA twin-twisted wire well suited to test and measurement applications.
The type K thermocouple is constructed from a robust Thermoplastic plug with a PFA insulated lead and capable of operating at temperature range of -75 to +250°C.
The type K ANSI thermocouple is colour coded with the polarity clearly displayed on the housing for quick identification and features good mechanical strength with resistance to oils, acids and other adverse fluids for a hardwearing and accurate type K thermocouple ideal for harsh industrial environments.
Supplied in packs of 10 for packs of 1 see RS PRO 814-0137

Features and Benefits

Type K thermocouple
ANSI colour coded
Exposed junction
Conductor core/ strands of 1 x 0.2 mm
Lead length of 1m
PFA insulation
Miniature flat pin plug
Plug constructed from robust thermoplastic
Able to withstand temperatures of 250°C
Ideal for test and measurement applications

Standards and Approvals: IEC-584-3

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:814-0137
Large Pack Size:262-3217
