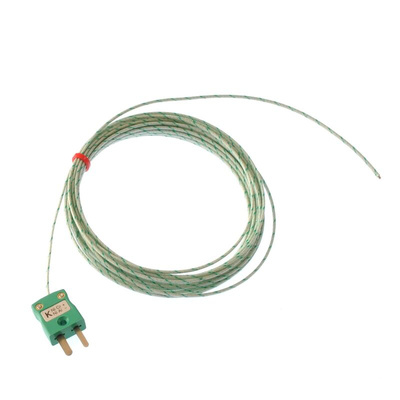

RS PRO Type K Thermocouple 10m Length, 1/0.3mm Diameter, -60°C → +400°C, Термопара

RS PRO IEC Colour Coded Exposed Junction Miniature Thermocouple Connector (Type K)

A miniature type K thermocouple plug connector featuring polarised contacts and an exposed junction Glass Fibre cable well suited to test and measurement applications.
The type K thermocouple is constructed from a robust Thermoplastic plug with a Glass Fibre insulated lead and is capable of operating temperature ranges of -60 to +400°C.
The type K IEC thermocouple is colour coded with the polarity clearly displayed on the housing for quick identification and features good mechanical strength with excellent heat resistant for a hardwearing and accurate type K thermocouple suitable for use in a wide range of applications.
Supplied in packs of 5 for packs of 1 see RS PRO 872-2610
Note: Not suitable for use with fluids

Type K thermocouple
IEC colour coded
Exposed junction
Conductor core/ strands of 1 x 0.3 mm
Class 2 tolerance
Lead length of 10m
Glass Fibre insulation
Miniature flat pin plug
Plug constructed from robust thermoplastic
Able to withstand temperatures of 400°C
Ideal for test and measurement applications

Standards and Approvals: IEC-584-3

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:872-2610
Large Pack Size:262-3224
