RS PRO PT100 RTD Sensor, 5mm Dia, 35mm Long, 4 Wire, Probe, Class B +250°C Max

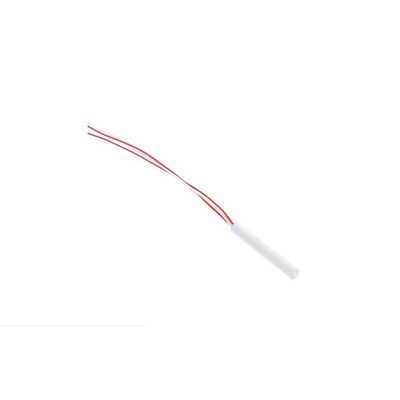

RS PRO Pt100 Ceramic Sheath Thin Film Platinum Resistance Element (450mm leads)

A highly reliable Platinum Resistance Thermometer (PRT) or Resistance Temperature Detector (RTD) element cased in a 5 x 35mm Ceramic sheath with 4 x 450mm PTFE insulated bare tails.
The Ceramic PRT element is designed to Class B tolerance for the precise measurement of temperature from -50°C up to 250°C. Built from Platinum the Pt100 sensor is highly precise and the protective Ceramic sheathing is ideal for use in harsh industrial processes adding an extra layer of corrosion and chemical resistance.
Designed for easy insertion into probes or equipment for the measurement of air, surface and immersion into fluids this Ceramic thin film Platinum Resistance Element is suitable for a wide range of applications plastics and chemical processing, stoves and grills, laboratories and food processing industries.
Supplied in packs of 5, for packs of 1 see RS PRO 237-1657

Features and Benefits

Pt100 Platinum Resistance element
Platinum Thin Film
Dimensions of 5 x 35mm
Suitable for surface, air and immersion readings
Class B tolerance
High stability and accurate output
Temperature measurement range from -50 to +250°C
Teflon insulated 450 mm leads
4 lead wires
Bare tails

Standards and Approvals: IEC 60751:2008

Why RS PRO?

RS PRO is the own brand of RS. The RS PRO Seal of Approval is your assurance of professional quality, a guarantee that every part is rigorously tested, inspected, and audited against demanding standards. Making RS PRO the Smart Choice for our customers.

Note

Small Pack Size:237-1657
Large Pack Size:262-3281
