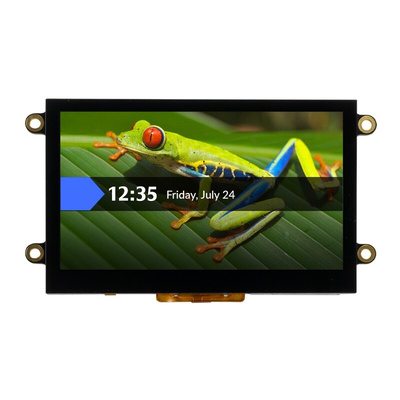

NEWHAVEN DISPLAY INTERNATIONAL NHD-4.3-800480FT-CSXP-CTP IPS TFT LCD Colour Display / Touch Screen, 4.3in, 800 x

4.3 inch IPS EVE2 Capacitive TFT

This 800X480 high resolution LCD TFT is an IPS display offering superior viewing angles, contrast ratios, and color representation. The 24-bit true color Liquid Crystal Display has a configurable LED driver with PWM, and an on-board FTDI FT813 Embedded Video Engine (EVE2). This display has 4 mounting holes, a 5-point multi-touch capacitive touch panel, and is RoHS compliant.
Newhaven Display’s 4.3” EVE2 TFT is powered by an FTDI/Bridgetek graphic engine to bring you built-in graphics operations, embedded widgets, 1MB graphics memory and more. This Human Machine Interface (HMI) display comes fully equipped with capacitive touch integration for responsive, multi-touch interaction. We designed the EVE2 TFTs to work with Serial SPI communication allowing for the use of low-cost MCUs as the system host, making this display both powerful and affordable.

The EVE2 TFT module is built with a feature-rich controller that offers an all in one solution for managing graphics, audio and touch. Portrait and landscape modes are supported, as well as multiple image formats and video playback. The built-in widgets include everything from buttons and sliders to gauges and clocks, making for a complete interactive interface right out of the box. No extra casing is required to mount this TFT either – just use the built-in mounting brackets with any standard M3 screws. Connect this module with the NHD-FT81X-SHIELD Arduino Shield (sold separately) for quick and easy setup with Arduino development boards. The EVE2 TFT module is the leading-edge solution for HMI displays in any application.
Built in scalable fonts
Five point multi touch capacitive touch panel
ROHS compliant
3M brightness enhancement film

Datasheet - NHD-4.3-800480FT-CSXP-CTP
