RS PRO Separator for Use with 50, 95 Terminal Blocks, ONE 25

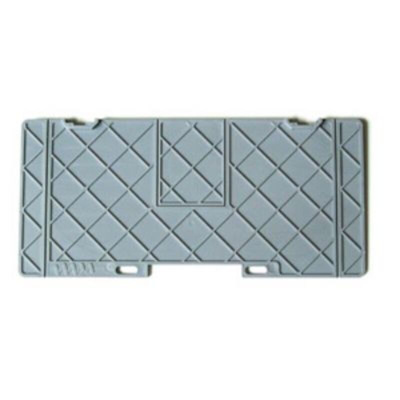

RS PRO Separator – End Row

Use this separator at the end of a row of terminals. It is necessary to insert end plates to ensure contact protection is maintained when terminals of different sizes are used within the same terminal block. The outer dimensions of the separator correspond to the dimensions of the terminals. The use of end plates increases air and creepage distances, which in turn affect voltage values. Locking pegs ensure that end plates can be mounted quickly.

Features and Benefits

• Flat separator


• Grey


• Increases air and creepage distances


• Locking pegs

Specification

• Material PA 66 – V0


• Length: 138 mm


• Width: 2 mm


• Height: 64 mm


• Weight: 11 g

Compatibility - RS PRO High Current Single Bolt Terminal Block

• RS PRO ONE 25, RS stock no: 262-4126


• RS PRO ONE 50, RS stock no: 262-4127


• RS PRO ONE 95, RS stock no: 262-4128

Applications

• High current line-up bolt terminal blocks


• End of a row of terminals

RS PRO Datasheet
