RS PRO Cover Separator for Use with RS PRO PT Terminal Blocks

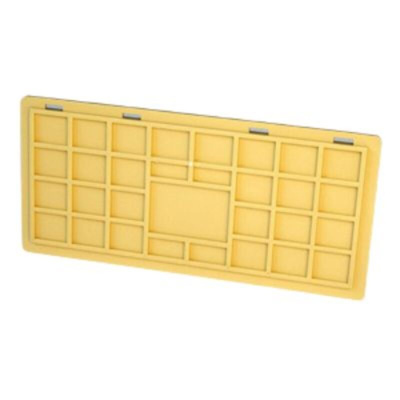

RS PRO Flat Cover Separator

Use this separator at the end of a row of terminals. It is necessary to insert end plates to ensure that contact protection is maintained when terminals of different sizes are used within the same terminal block. The outer dimensions of the separator correspond to the dimensions of the terminals. The use of end plates increases air and creepage distances, which in turn affect voltage values. Locking pegs ensure that end plates can be mounted quickly.

Features and Benefits

• Flat cover/ end plate


• Yellow insulating Material


• Increases air and creepage distances


• Locking pegs

Specification

• Material PA 66 – V0


• Length: 150 mm


• Width: 6 mm


• Height: 70 mm


• Weight: 35 g

Applications

• High current line-up bolt terminal blocks

RS PRO Datasheet
