RS PRO Jumper Bar for Use with RS PRO 10 Terminal Blocks, 65A

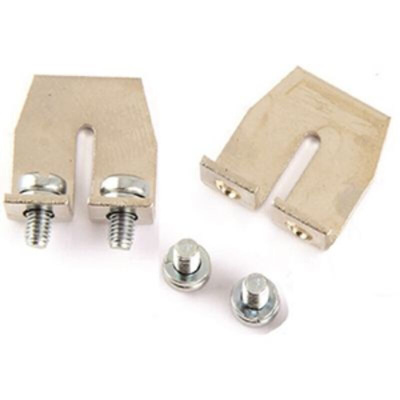

RS PRO Jumper Bar – 2 Pole

Complete your control panel projects with RS PRO jumper bars. Our jumpers are designed for feed-through terminal blocks, made from tin-plated copper alloy, and used to establish electrical connections between adjacent terminals. The RS PRO jumper is ready to be screwed onto the RS PRO 10 series terminal blocks (6 AWG) with the screws provided.

Features and Benefits

• Jumper bar


• Pitch: 9.1 mm


• 2 poles


• 100 jumpers


• 200 screws


• For use with RS PRO 10 series terminal blocks (6 AWG)

Specification

• Colour: Silver


• Length: 500 mm


• Pitch: 9.1 mm


• Width: 7.5 mm


• Weight: 136 g


• Screws: M3 – 0.5 Nm – zinc plated steel


• Jumper bar: Tin plated copper alloy


• Nominal Current: 65A

Applications

• Electrical connection


• Commoning


• Circuit customisation


• Isolation
