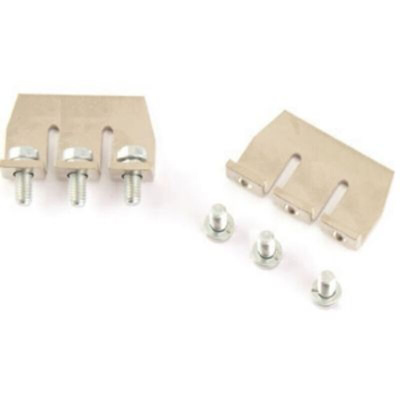

RS PRO Jumper Bar for Use with RS Pro 16-25 Terminal Blocks, 85A

RS PRO Jumper Bar –3 Pole

Complete your control panel projects with RS PRO jumper bars. Our jumpers are designed for feed-through terminal blocks, made from tin-plated copper alloy, and used to establish electrical connections between adjacent terminals. The RS PRO jumper is ready to be screwed onto the RS PRO 16-25 series terminal blocks (4 AWG) with the screws provided.

Features and Benefits

• Jumper bar


• Pitch: 12 mm


• 3 poles


• 50 jumpers


• 150 screws


• For use with RS PRO 16-25 series terminal blocks (4 AWG)

Specification

• Colour: Silver


• Length: 33.5 mm


• Pitch: 12 mm


• Width: 10 mm


• Weight: 18.6 g


• Screws: M4 – 0.8 Nm – zinc plated steel


• Jumper bar: Tin plated copper alloy


• Nominal Current: 85A

Applications

• Electrical connection


• Commoning


• Circuit customisation


• Isolation
