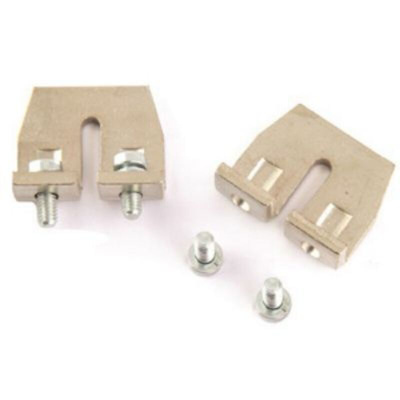

RS PRO Jumper Bar for Use with RS PRO 35-50 Terminal Blocks, 135A

RS PRO Jumper Bar –2 Pole

Complete your control panel projects with RS PRO jumper bars. Our jumpers are designed for feed-through terminal blocks, made from tin-plated copper alloy, and used to establish electrical connections between adjacent terminals. The RS PRO jumper is ready to be screwed onto the RS PRO 30-50 series terminal blocks (1/0 AWG) with the screws provided.

Features and Benefits

• Jumper bar


• Pitch: 16.1 mm


• 50 jumper, 2 pole


• 100 screws


• For use with RS PRO 35-50 series terminal blocks (1/ 0 AWG)

Specification

• Colour: Silver


• Length: 28.6 mm


• Pitch: 16.1 mm


• Width: 12 mm


• Weight: 22 g


• Screws: M4 – 0.8 Nm – zinc plated steel


• Jumper bar: Tin plated copper alloy


• Nominal Current: 135A

Applications

• Electrical connection


• Commoning


• Circuit customisation


• Isolation
