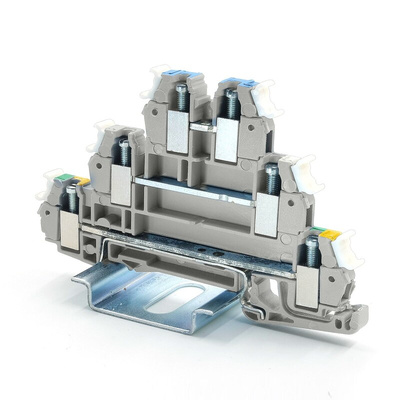

RS PRO 3-Way DIN Rail Earth Terminal Block, 2.5mm², 26 → 14 AWG Wire, Cage Clamp, PA 66 Housing

RS PRO Feedthrough Terminal Block, Two Stage + Earth, 26 -14 AWG

Feed-through terminal blocks, also known as pass-through terminal blocks or through terminal blocks, are electrical connectors used to create secure and reliable connections for electrical wires. The two-stage + earth design of feed through the terminal block allows wires to be inserted from both sides, passing through the terminal block, and contacting the internal conducting elements.

Maintenance and Flexibility

Feedthrough terminal blocks provide a convenient solution for maintenance and modifications. As the wires pass through the block, individual wires can be disconnected or added without affecting the rest of the circuit. This flexibility makes it easier to make changes or repairs in complex electrical systems.

Features and Benefits

• Two stage + earth


• Termination Method: Cage clamp – Zinc plated steel


• The feed-through terminal block is suitable for joining and/or connecting one or more conductors


• Cross connection is made by screw jumper


• Ideal for distributing power supply, signal and data within the electrical panel

Specification

• 3 Stage Feed Through


• Blue on top


• PE foot


• Width: 5 mm


• 2.5 mm² – 14 AWG


• 24 A - 250 V


• DIN Rail TH35


• Grey

Applications

• Electrical enclosures


• Terminals Blocks


• Control panels
