RS PRO Grey Non-Fused Terminal Block, 1.5mm², 1-Level, Cage Clamp Termination

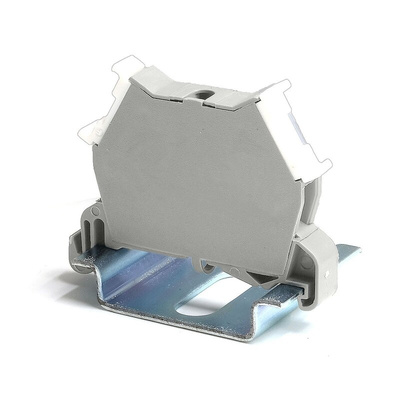

RS PRO Thermocouple Terminal Block - For thermocouples 20 – 16 AWG

Choose this RS PRO TC thermocouple terminal block designed with one screw clamp and mounts direct to a din rail. It has leads that clamp together and the self-centring junction element has been designed to accept any type of thermocouple lead connection.

Features and Benefits

• Feed through


• For compensated circuits for thermocouples


• Cage Clamp – Zinc plated steel


• Screw thread: M3 – Zinc plated steel


• Cable UL: 20 – 16 AWG


• Voltage rating: 300 V


• Current Rating: 10A


• TH35 DIN rail mounting


• Colour: Grey

Specification

• Width: 6 mm


• Height: 27.5 mm


• Length: 42 mm


• Weight: 6.4 g

Applications

• Din rail terminal blocks

RS PRO Datasheet
