RS PRO Cover Profile Kit for Use with RS PRO TEST6 Cover

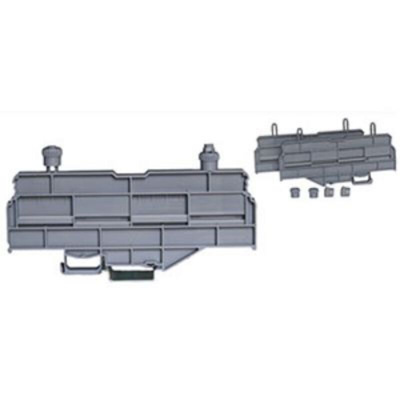

RS PRO Cover Carrier Profile Kit

Complete your disconnect slider terminal install with the RS PRO cover profile carrier kit. This kit consists of two profile carriers and four cover clips and together ensures contact protection is maintained when terminals of different sizes are used within the same terminal block.

Features and Benefits

• Cover profile carrier kit


• For disconnect slider terminal blocks 8 AWG


• Ensures contact protection is maintained


• EURO STOP


• Colour: Grey


• Din rail TH35


• Lock clips

Cover Carrier Profile Specification

• Insulating Material PA 66 – V0


• Length 144 mm


• Height 70 mm


• Width 8 mm


• Weight 36.8 g

Lock Clip Specification

• Insulating Material: PA 66 – V0


• External diameter: dia.12 mm


• Height: 10 mm


• Internal diameter: dia.10 mm


• Weight: 8 g

Kit Contents

• 2 x Carrier profiles + 4 lock clips

Available Separately

• RS PRO Cover Carrier Profile, RS stock no: 262-4290


• RS PRO Lock Clip, RS stock no: 262-4291

Application

• Terminal block protection
