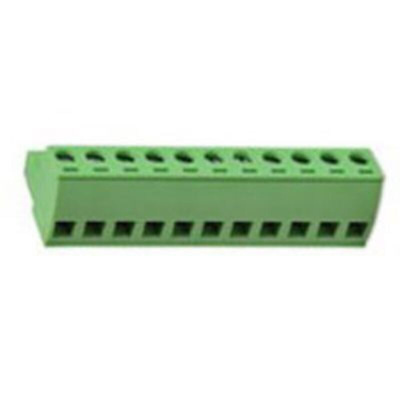

RS PRO 5.08mm Pitch 11 Way Pluggable Terminal Block, Plug, PCB, Cage Clamp Termination

RS PRO Pluggable Terminal Blocks – 22-14 AWG, 11 Pole

The efficient plug-in system of these RS PRO pluggable terminal blocks dramatically reduces the time required for wiring tasks. Whether you're working on large-scale projects or intricate circuitry, the quick and secure connections provided by the plug-in terminal blocks boost productivity.

Why Would You Choose These Terminal Blocks

The RS PRO pluggable terminal blocks are constructed from a PA 66 premium material with a UL94V0 flammable rating, ensuring excellent performance even in harsh operating conditions. Whether it's control panels, machinery, lighting installations, or any other electrical application, the pluggable terminal blocks provide a versatile and reliable solution for a wide range of projects.

Features and Benefits

• Pluggable


• Pitch 5.08 mm


• 2.5 mm² – 14 AWG


• 12 A – 400 V


• 11 poles


• Cage Clamp – Zinc plated brass


• Screw thread: M3 – Zinc plated steel


• Green

Applications

• Control Panels


• Lighting installations

RS PRO Datasheet
