REFICC80QSG84W1BPATOBO1, Infineon REF_ICC80QSG_84W1_BPA Flyback Controller for REF_ICC80QSG_84W1_BPA for 700 V CoolMOS P7, Quasi Resonant

84 W AC-DC reference design for battery charger

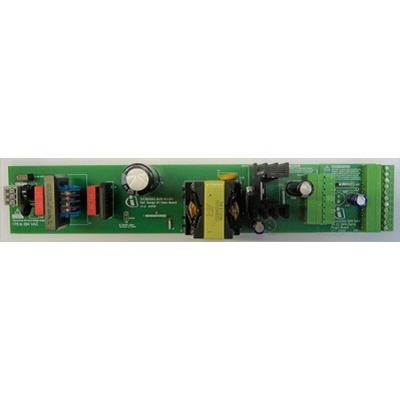

The REF_ICC80QSG_84W1_BPA is a flyback-based reference design, scalable from 65 W to >100 W and aimed for 12 V/18 V Li-Ion battery packs. It is based on the quasi-resonant flyback controller ICC80QSG and the renowned 700 V CoolMOS™ P7 technology in the small footprint and wave solderable SOT-223 package. The controller burst mode enables low standby <200 mW. The reference board includes a secondary-side auxiliary supply for battery switch and supply of a MCU. Measured efficiency is >90 percent at 230 VAC input voltage, providing excellent performance versus BOM cost ratio for chargers for consumer appliances.

Summary of Features

•Secondary-side regulated (SSR) constant current (CC) output
•High efficiency and low EMI with quasi-resonant (QR) mode, switching in valley n (QRMn)
•Efficiency > 90%, at 230 VAC input and full-load condition
•Low standby power with reduced gate driver voltage in burst mode
•Standby power <200 mW, at 230 VAC input and no-load condition
•Configurable hysteresis of brown-in and brown-out
•Adaptive brown-out level triggering based on output power protecting primary components from overheating and saturation
•Internal overtemperature protection (OTP), output overvoltage protection (OVP), VCC OVP, MOSFET overcurrent protection (OCP), brown-in and brown-out protection, input OVP and open loop protection

Benefits

•84 W scalable AC-DC stage design from 65 W to 130 W
•Optimum efficiency and low EMI at low BOM
•Easy, safe and robust AC-DC solution for a lot of battery-powered applications

Potential Applications

•Battery charging up to 130 W
•Power tools
•E-bikes
•PC
•TV
•Audio amplifier applications up to 130 W

List of Components

•ICC80QSG
•IPN70R450P7S (700V CoolMOS™ P7)

Datasheet - REFICC80QSG84W1BPATOBO1
