Renesas Electronics QS3VH125S1G8, Bus Switch, Quad

The Renesas Electronics Quad Bus Switch is a high bandwidth, quad bus switch. The quad bus Switch has very low ON resistance, resulting in under 250ps propagation delay through the switch. The switches can be turned ON under the control of individual LVTTL-compatible active low output enable signals for bidirectional data flow with no added delay or ground bounce. The combination of near-zero propagation delay, high OFF impedance, and over-voltage tolerance makes the quad bus ideal for high performance communications applications. The quad bus operates from -40C to +85C.

Low RON - 4 ohm typical
Flat RON characteristics over operating range
Rail-to-rail switching 0 - 5V
Bidirectional dataflow with near-zero delay no added ground bounce
Excellent RON matching between channels
High bandwidth - up to 500MHz
LVTTL-compatible control Inputs
Undershoot clamp diodes on all switch and control Inputs
Low I/O capacitance, 4pF typical

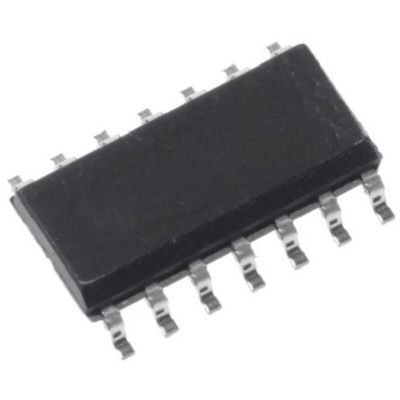

Available in 16 pin QSOP and 14 pin SOIC packages

Datasheet - QS3VH125S1G8
