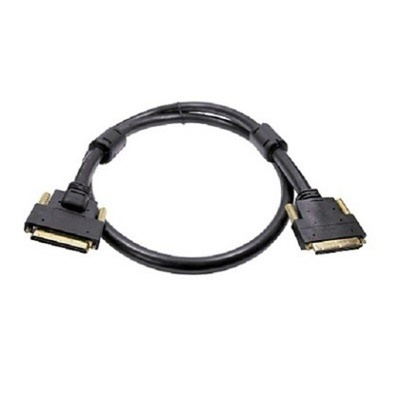

RS PRO Male VHDCI to Male VHDCI Cable 1m

RS PRO Male to Male VHDCI Cable

Use these VHDCI cables for a reliable and efficient way to transfer data to high-performance computing systems. Our VHDCI cable connectors are small and compact, with 68 pins arranged in two rows of 34 pins each, designed to transfer data at high speeds, up to 320 MB/s, and are often used to connect devices such as hard drives, tape drives, and other storage devices to a computer or network

Features and Benefits

• Very High-Density Cable Interconnect (VHDCI)


• Male 68 pin


• Colour: Black


• Enhanced Shield


• Support SCSI interface

Specification

• Cable: UL2919 28AWG 34 Twisted pairs + AEB


• Connectors: 68 Pin Male connector


• Electrical Current - Maximum per Contact 0.5A


• Material: PE / PVC


• Contacts Nickel plated


• Ferrite core: Ø17.5 mm x 28.5 mm x Ø12 mm


• Screws: 5 mm x 37.5 mm


• Voltage: Maximum 30V AC (RMS)/DC


• Current 0.5A max per contact

RS PRO Male to Male VHDCI Variants – Available Separately

• Cable Length 1m, RS stock no: 262-9058


• Cable Length 2m, RS stock no: 262-9059

Applications

• Mainframe computers


• Test Equipment


• Medical Devices


• Audio /Video Editing & Storage

RS PRO Datasheet
