RS PRO Through Beam Photoelectric Sensor, Cylindrical Sensor, 20 m Detection Range

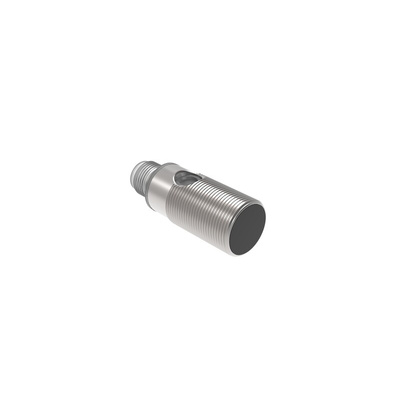

RS PRO IP67, M18, Through Beam Optical, Short Case, Cylindrical, Infrared Photoelectric Sensor, 20 M Emitter Sensing Distance

The Through Beam detection, infrared, short cased, cylindrical / barrel shaped photoelectric sensor from RS PRO providing you with a 20 m Emitter and receiver detection distance, using through beam sensor technology, an excellent sensor for installing within small spaces. The short case sensors are available separately as photoelectric emitter and receiver providing flexibility with installations plus are suitable for a wide range of industrial and automation applications.

The photoelectric sensor has a nickel copper alloy, cylindrical shape design plus is IP67 rated (waterproof) making the sensor suitable for use in harsh environments. Flexible and easy to operate, emitter and receiver, infrared light source, LED output indicators, 1 Ms response time, short case housing, short circuit, overload, reverse polarity protection are just a few of the features within the RS PRO Photoelectric sensor.

Features & Benefits

• Through Beam Technology Photoelectric sensor emitter


• Emitter 20 m Sensing distance, wide angle, long distance


• Single turn potentiometer distance adjustment


• Infrared light source (850 nm)


• 10 to 30 V dc Supply voltage


• Emitter consumption current 20mA


• M12 4-pin connector


• Cylindrical shaped design, easy installation


• Short circuit, overload, reverse polarity protection


• LED Green power and yellow overload light indicators


• 360° indicator visibility


• Ambient light – Anti-sunlight, incandescent interference


• Nickel copper alloy Sensor housing, PMMA Filter


• Dimensions - 36 mm (length)


• Good stable detection accuracy


• Easy to install and debug, excellent within small spaces


• IP67 Protection


• CE Certified

Applications Type

As the RS PRO photoelectric through beam sensors are small, they are an excellent choice where space is limited and when fast, reliable, exact detection is important. With an immunity to light pollution and able to operate within exacting environments the sensors are a versatile tool within many industries.

• Door entry


• Door access control


• Packaging


• Automotive


• Entry control machinery


• Suitable for use in many different environments

What is a Through-Beam Photoelectric Sensor

This sensor is made up of a light emitter and a light receiver, the detection distance can be increased by separating the light emitter and receiver. When using the through-beam sensor the emitter and receiver are installed either side of the of the path of objects to be detected. When the object passes through the light beam the light is blocked by the object and the light receiving device acts to output a switch control signal.

Emitters and Receivers Available

• Stock Number 2629073 – Emitter, 2m PVC Cable


• Stock Number 2629075 – Receiver, PNP NO/NC, 2m PVC Cable


• Stock Number 2629074 –Emitter, M12 4-pin Connector


• Stock Number 2629076 – Receiver, PNP NO/NC, M12 4-pin Connector
